480V Three Phase Wye Surge Protector SP3P480VY
$899.00
- 480V Three Phase Wye Application
- Complete surge protection for all phases
- 260kA Surge Rating
- LED status Indicator for each phase
480V Three Phase Wye Surge Protector 3P4W (SP3P480VY)
Most 480V power systems are a Wye configuration because
- Phase to neutral voltage is 277V or below 300V
- It can power 277V single phase lighting loads
A 480 3 Phase Wye power system is called 480V 3 Phase 4 Wire and 480Y/277V. These are technically more accurate because they refer to the neutral.
- The “4 Wire” in 480V 3 Phase 4 Wire refers to the neutral as 4th wire.
- The” Y” in 480Y/277V refers to the neutral as the center of the Y shaped power source.

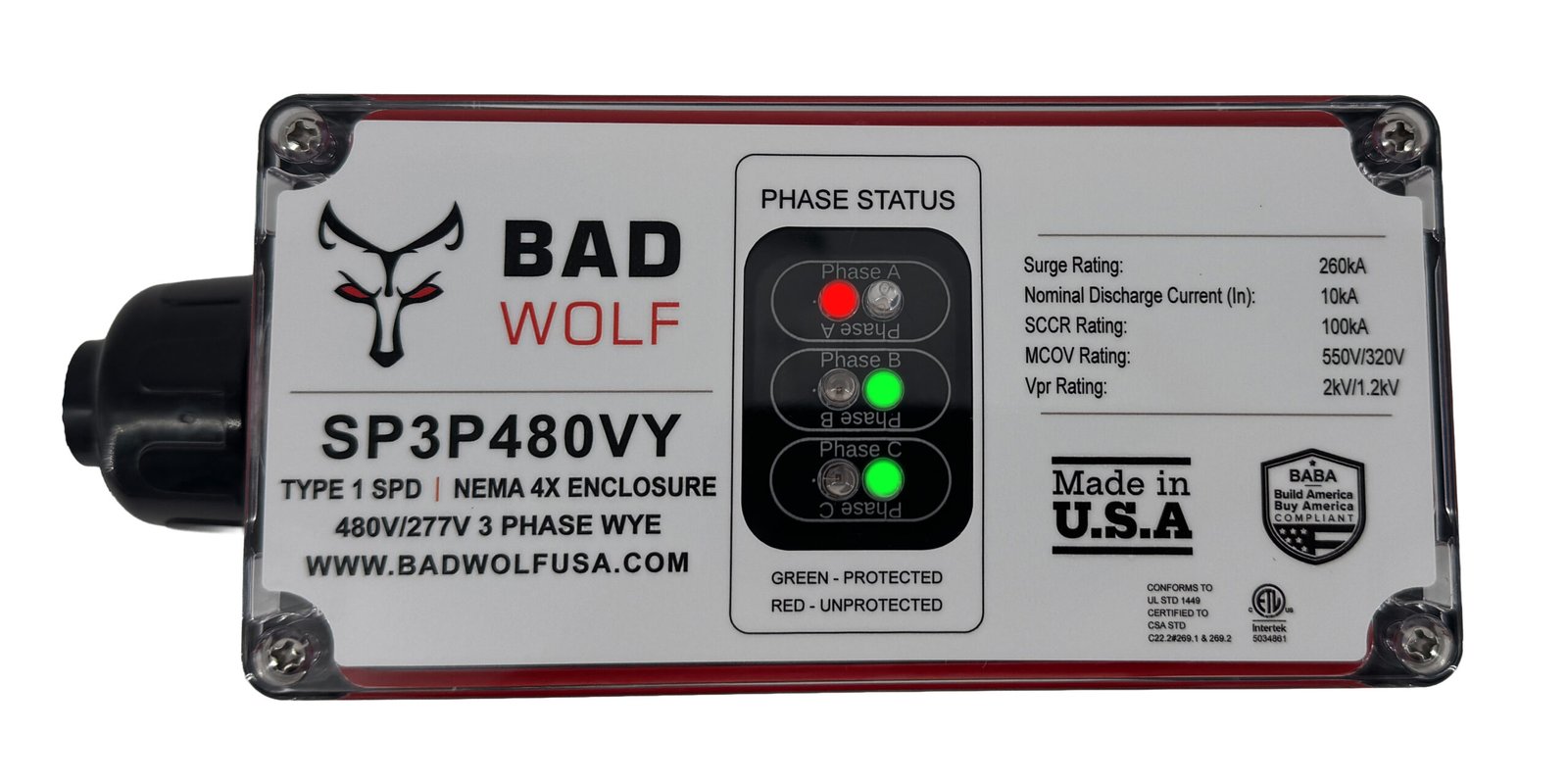

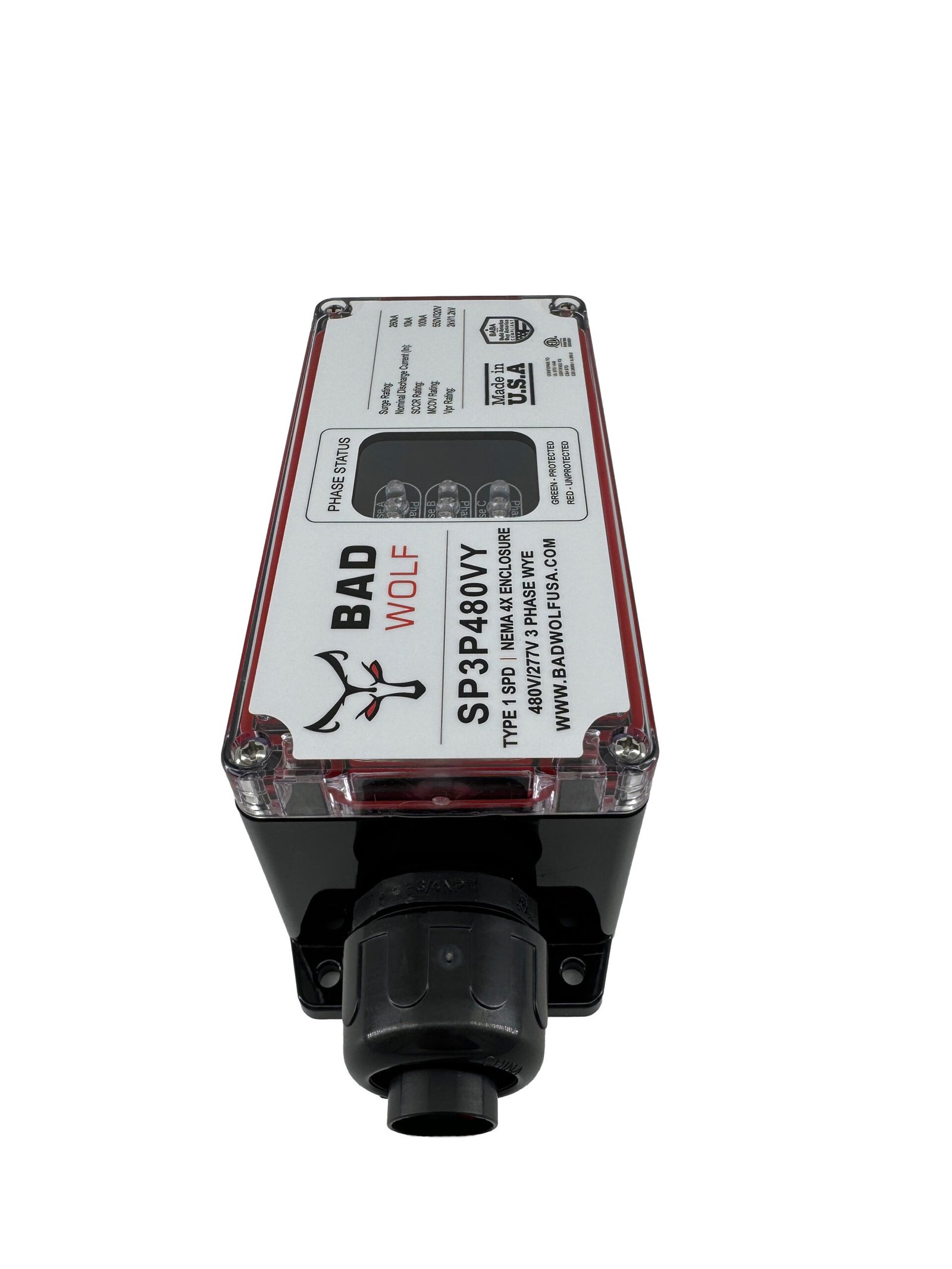

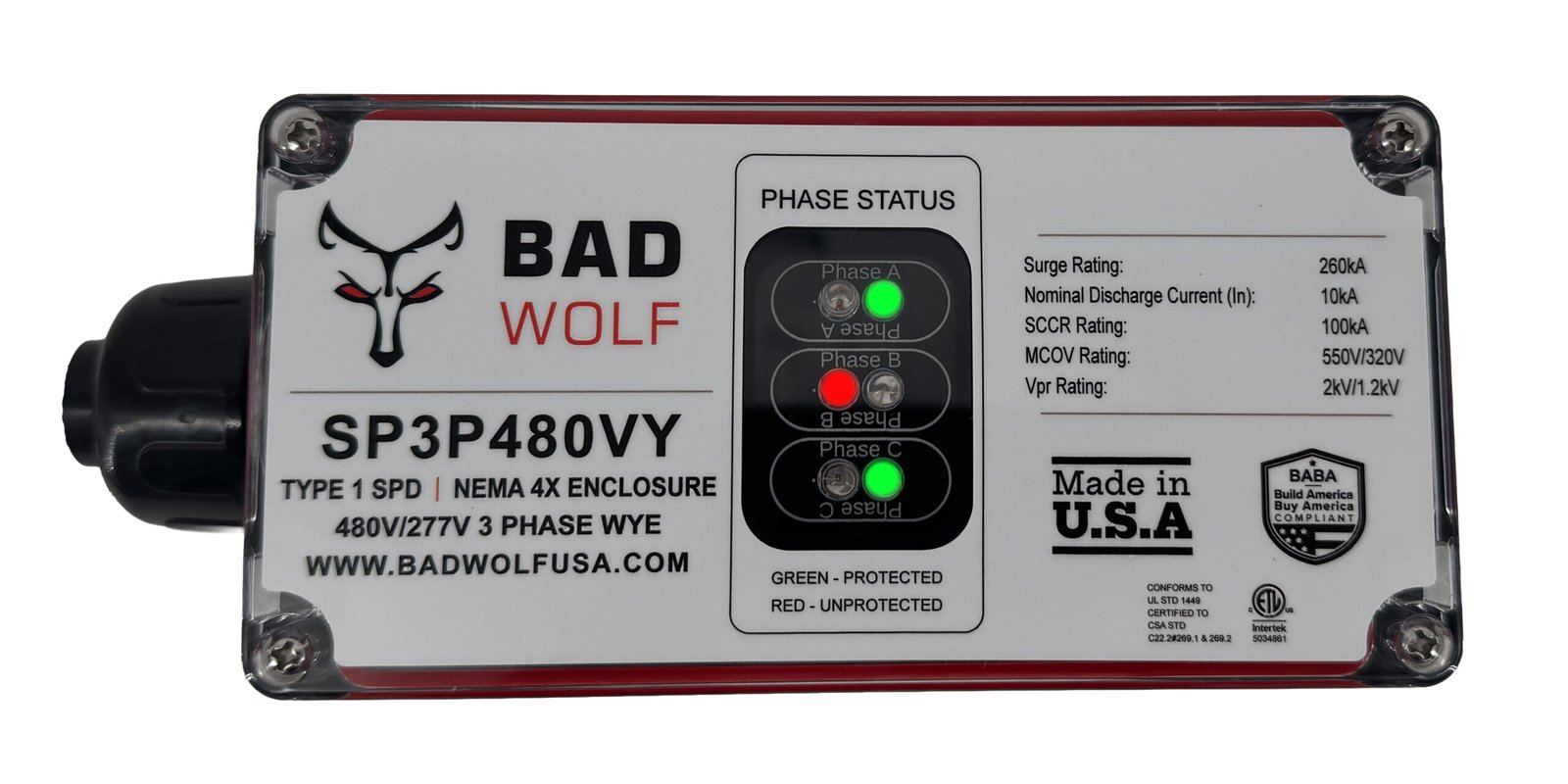

Green LED status indicator for each phase provides fast verification of operation. Designed for indoor or outdoor use and includes waterproof 3/4" conduit connector.
Product Details
| Weight | 29 oz |
|---|---|
| Dimensions | 9 × 3.5 × 3.5 in |
| Application | Commercial, EV Charging Station, Farm, Generator |
| Connection Type | Hardwire |
| Surge Type Category Rating | EMP (E1, E2 and E3 Phase), Lightning, Solar Flare (CME) |
| Environmental Rating | Indoor, Outdoor |
| Service Type | 3 Phase Wye |
| Surge Current Rating (A) | 260kA |
| Type of Electrical Current | AC |
| SPD Classification | Type 2 |
| Voltage (Vac) | 480 |
Specifications
Review the product details and product description for voltage, surge current rating, connection type, enclosure rating, wiring details, certifications, and other technical information.
For detailed product-specific ratings, refer to the specifications listed on this product page and any available product documentation.
Installation
Surge protection devices are recommended to be installed by a qualified electrician, licensed contractor, or qualified installer in accordance with the product instructions, applicable electrical codes, and local requirements.
Always disconnect power before installation and verify the product is suitable for the electrical system where it will be installed.
Warranty
Bad Wolf surge protection devices include a 5-year product warranty.
Eligible products may also include connected equipment warranty coverage when properly installed and registered according to the warranty terms.
Please review the full warranty terms for complete details, limitations, registration requirements, and coverage information.
