Marine Surge Protection

A typical marine vessel can have dozens to hundreds of electrical circuits, depending on its size, purpose, and complexity.

Small boats (20–40 ft, recreational)

• Around 10–30 circuits

• Examples:

  • Navigation lights

  • Bilge pumps

  • Freshwater pump

  • Cabin lights

  • Electronics (GPS, VHF radio)

  • Engine instruments

Mid-sized vessels (40–100 ft, commercial or luxury yachts)

• 30–100+ circuits

• Adds systems like:

  • Air conditioning

  • Generator controls

  • Shore power input

  • Inverters/chargers

  • Multiple battery banks

  • Refrigeration

  • Entertainment systems

Large commercial ships (cargo, tankers, passenger ships)

• Hundreds to over 1,000 circuits

• Divided into major systems:

  • Propulsion & engine systems

  • Navigation & communication

  • Safety (fire suppression, alarms, lifeboats)

  • Hotel services (HVAC, lighting, galley)

  • Cargo handling systems

  • Redundant power sources (generators, emergency circuits)

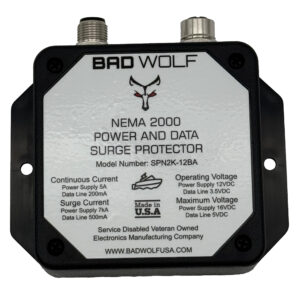

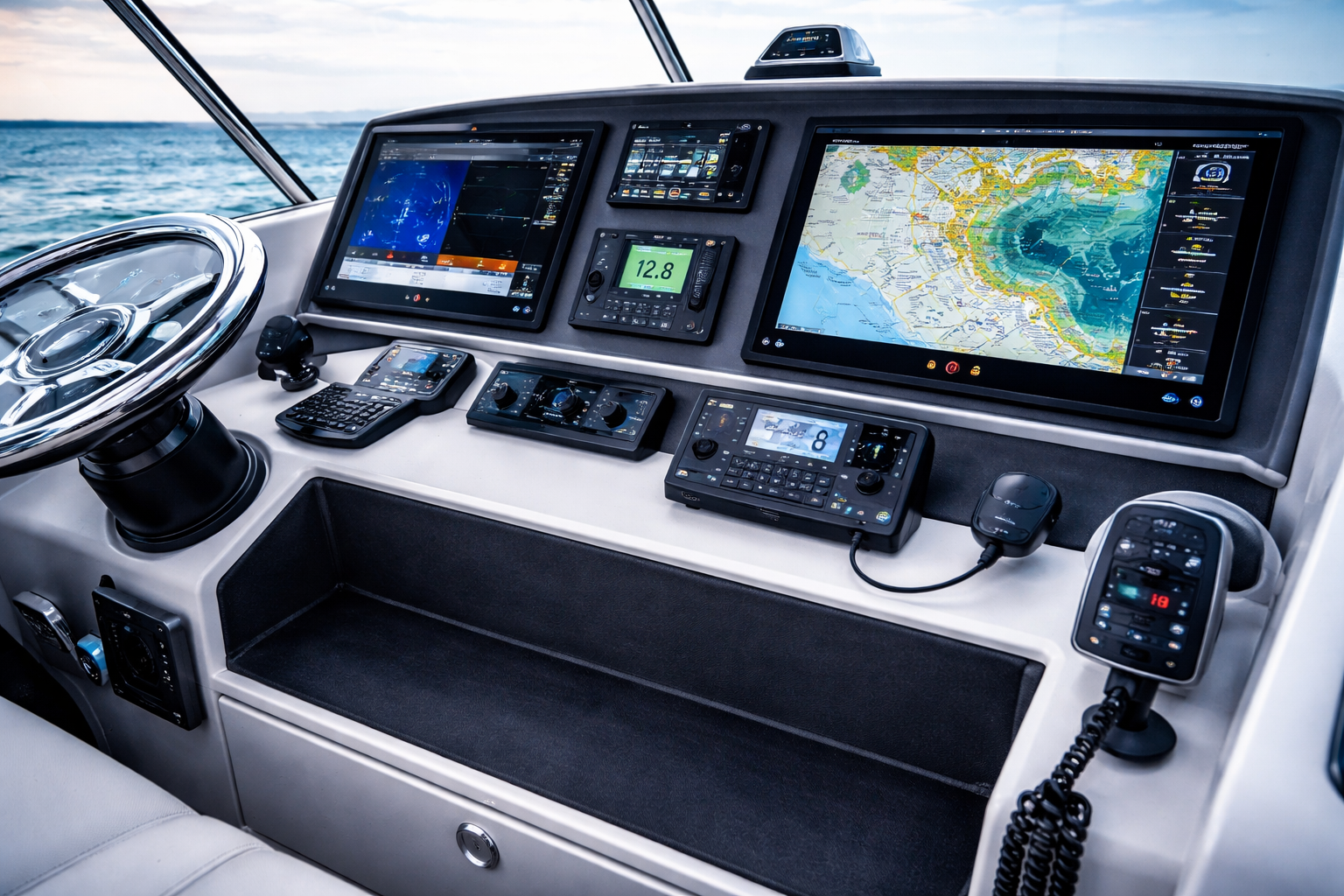

NEMA 2000 Networks, which are widely used in marine electronics for communication between devices, are typically designed to operate within a specified voltage range. Surges in voltage, such as those from lightning strikes, power fluctuations, or faulty electrical equipment, can cause various issues, including:

• Damage to Network Components: Surges can fry the microprocessors or circuits within NMEA 2000 devices (such as GPS, fish finders, depth sounders, etc.), rendering them inoperable.
• Communication Failures: Even if the devices aren’t immediately damaged, a surge might cause temporary malfunctions or disruption in the data transmission, leading to loss of communication between devices.
• Corruption of Data: Power surges could corrupt the data being transferred across the network, which could lead to unreliable readings or erroneous behavior of connected devices.
• Burnt or Blown Fuses: Surges can cause fuses within the network or individual devices to blow, cutting off power to certain components of the system.

Electrical surges are one of the leading causes of damage to electrical components on boats and ships. The surge can overwhelm and burn out sensitive electronics, disrupt the flow of power, and cause long-term malfunctions.

Common Sources of Electrical Surges in Marine Environments

1. Lightning Strikes

• Cause: A direct or nearby lightning strike can cause an enormous electrical surge. This surge can travel through the air, the water, or the boat’s grounding system and enter the electrical circuits on board.
• Effect: The voltage from a lightning strike can overwhelm the boat’s electrical components, causing them to short-circuit or fry. It’s one of the most dangerous sources of electrical surges on a boat.

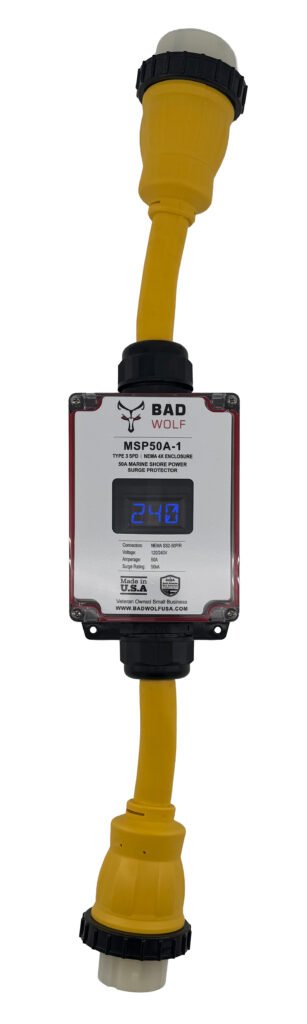

2. Shore Power Connections

• Cause: When connecting to shore power, there may be fluctuations or imbalances in the electrical supply. A sudden surge in the shore power system—either when first plugging in or during a power failure or restoration—can send a voltage spike into the boat’s electrical system.
• Effect: This can damage onboard appliances, chargers, inverters, or any other sensitive equipment connected to the electrical system. Improper grounding or wiring on shore power sources can exacerbate this risk.

3. Engine-Driven Electrical Systems

• Cause: When the boat’s engine is running, alternators are used to charge the boat’s battery. If the alternator fails or overcharges the battery, it can produce a voltage spike in the system.
• Effect: This can lead to overvoltage, damaging the boat’s electrical devices, including the battery, fuses, and electronic equipment like radios, GPS, and lights.

4. Inverter and Battery Charger Systems

• Cause: Inverters and battery chargers convert DC (direct current) to AC (alternating current) or regulate charging from shore power. These devices can malfunction or produce a surge if there’s a failure in their internal components.
• Effect: A surge can easily occur if these devices are not working correctly, resulting in a voltage spike that can damage or destroy sensitive electronics and appliances on board.

5. Faulty Wiring or Connections

• Cause: Loose, corroded, or improperly installed wires or connections can cause electrical arcs, which in turn can create surges. Electrical surges can also occur if wires are exposed to water or become damaged.
• Effect: These surges can be damaging to the boat’s system and create long-term electrical issues that may be difficult to diagnose or repair.

6. Power Grid Issues

• Cause: When a boat is connected to the power grid at a marina or dock, fluctuations in the local power grid can send surges into the boat’s electrical system. These can happen during events like storms, power outages, or grid switching.
• Effect: A power grid surge can easily enter the boat’s system through shore power lines, causing damage to sensitive electronics.

7. Electrical Device Malfunctions

• Cause: Malfunctions in onboard electrical devices (like motors, lights, or appliances) or issues in the power distribution system can generate surges within the boat’s own electrical system.

Effect: Devices that draw high amounts of current, such as air conditioners, refrigerators, or large motors, may create electrical spikes that affect the rest of the system.

How Electrical Surges Damage Marine Systems

• Overloading Circuits: A surge can send too much voltage into a circuit, causing the wires or components to overheat and potentially melt or burn out.
• Damaging Electronics: Sensitive electronics such as GPS units, radios, depth sounders, navigation systems, and other microprocessor-based devices are highly vulnerable to electrical surges. A surge can fry internal components, rendering these systems useless.
• Burning Out Batteries and Chargers: A surge in voltage can destroy the charging circuit of batteries and damage the batteries themselves, leading to potential leaks, overheating, or fires.
• Blowing Fuses and Circuit Breakers: Electrical surges can trigger fuses and circuit breakers to trip. While this protects the system from further damage, it may leave critical equipment without power or result in needing to replace these safety devices.

Overheating Wiring: The surge can cause wires and connectors to overheat, potentially melting the insulation and leading to fire risks or shorts.
