SP24AA — 24VAC Single-Pair Low-Voltage Surge Protector (Series / Inline) with Equipment Ground Connection
$79.00
The SP24AA is a compact 24VAC single-pair low-voltage surge protector for compatible control and signaling circuits. It is designed for inline, or series, installation on 24VAC circuits used with HVAC controls, thermostats, doorbells, irrigation controls, and compatible fire, security, or alarm loops.
- Designed for 24VAC circuits only
- Inline / series installation using Terminal A and Terminal B
- Protects one low-voltage circuit pair

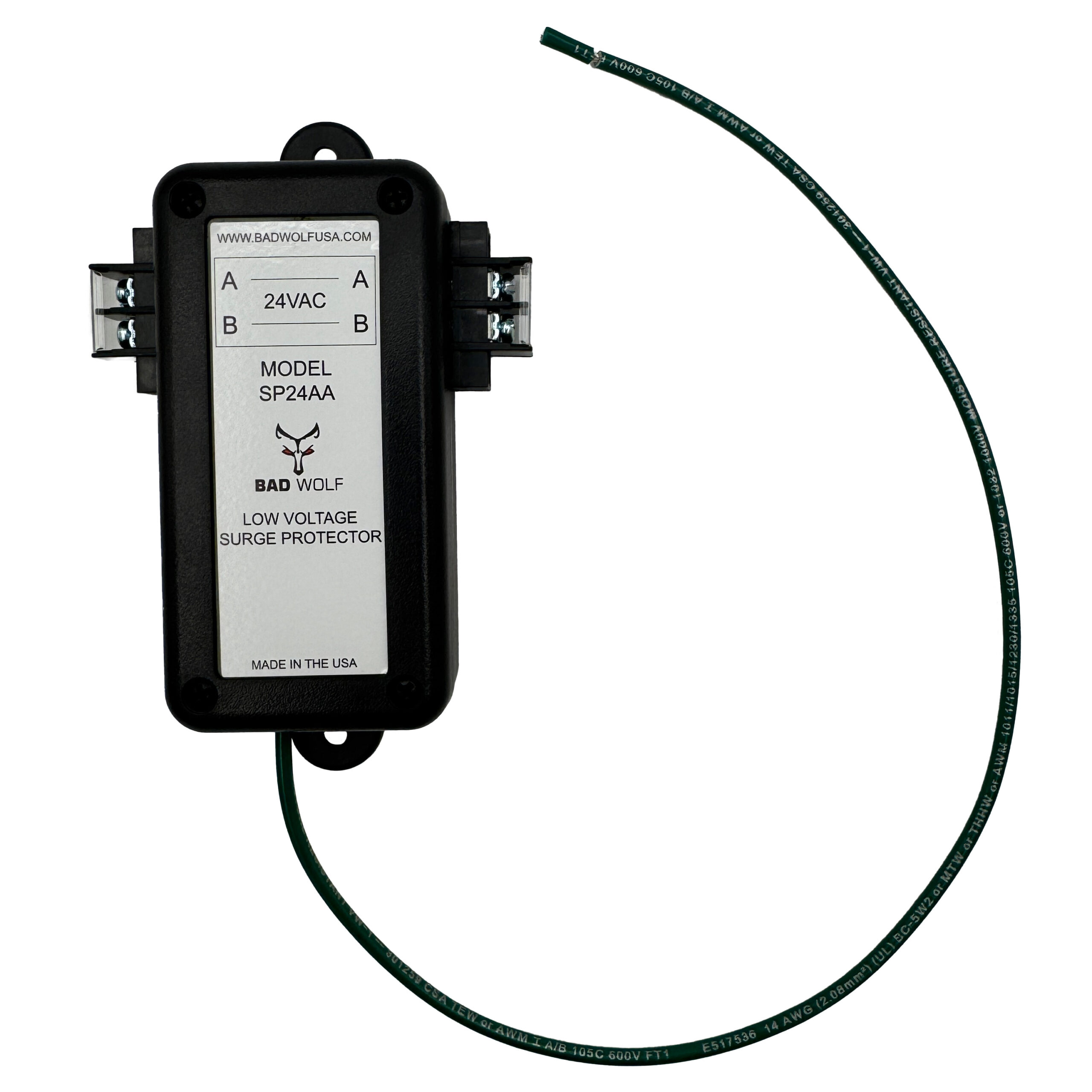

- Green equipment ground lead provided
- Suitable for HVAC, thermostat, doorbell, irrigation, and compatible control circuits
Verify circuit voltage before installation. Do not install on circuits other than compatible 24VAC control or signaling circuits.

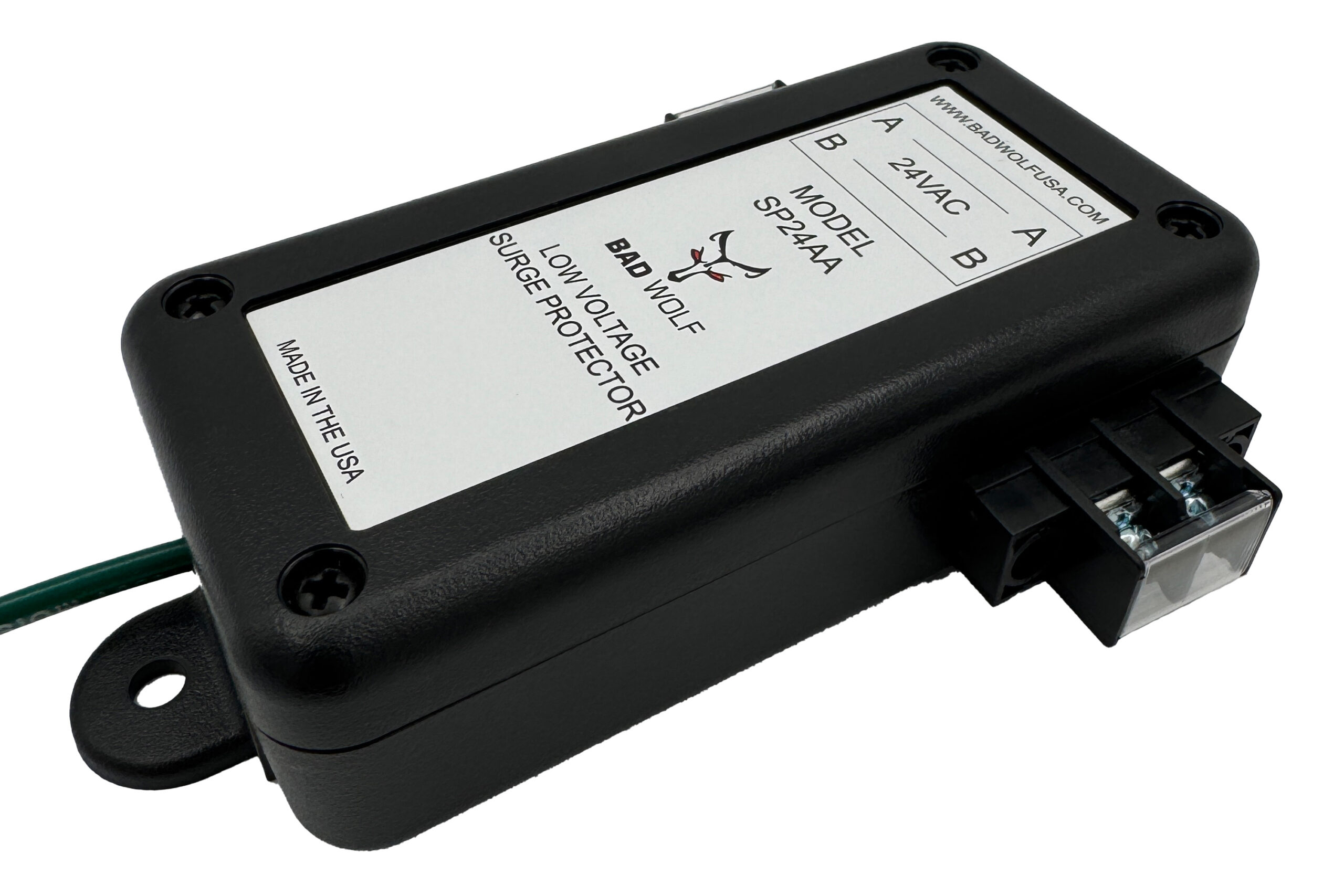

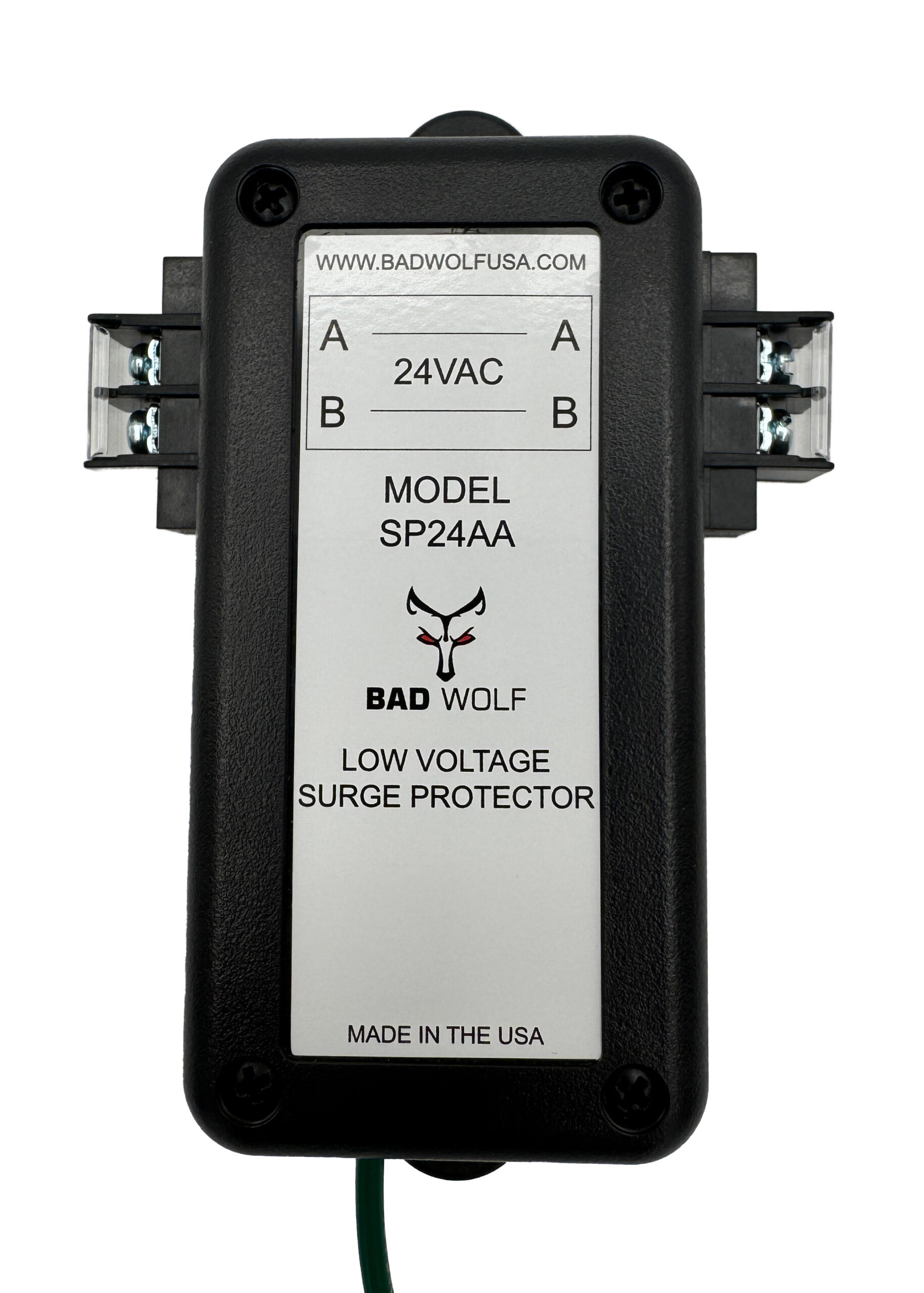

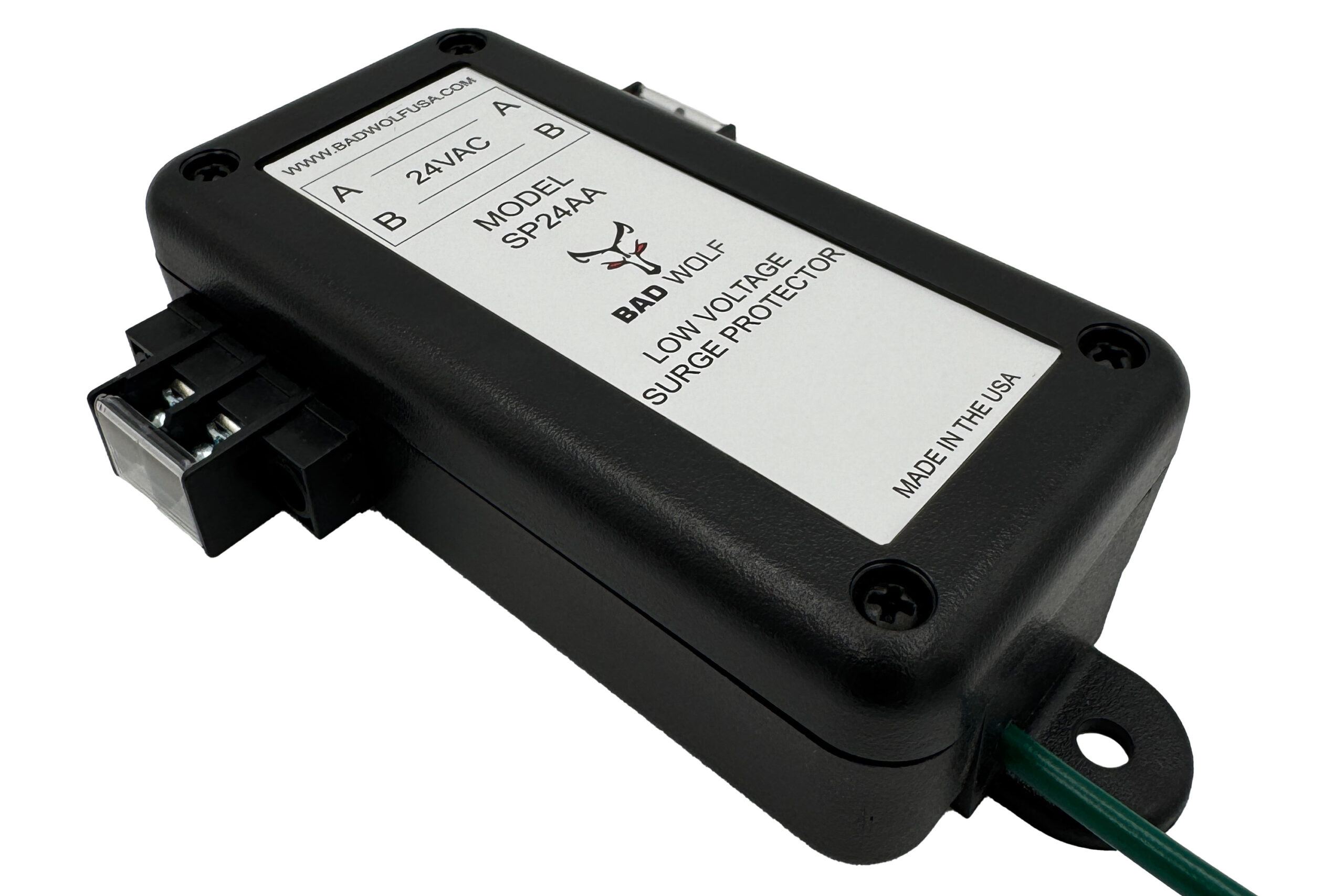

SP24AA 24VAC Inline Low-Voltage Surge Protector
The Bad Wolf SP24AA is a 24VAC single-pair low-voltage surge protector designed for inline, or series, installation on compatible control and signaling circuits. It protects one 24VAC circuit through Terminal A and Terminal B and includes a green equipment ground lead to help manage common-mode surge events.
The SP24AA helps protect sensitive low-voltage equipment from transient overvoltage events caused by nearby lightning, utility switching, inductive load switching, and other electrical disturbances on compatible 24VAC circuits.
Where It Is Used
The SP24AA is commonly installed on 24VAC control power and low-voltage signaling circuits, including:
- HVAC control circuits and thermostats
- Air handler and furnace control boards
- Doorbell and smart doorbell transformer circuits
- Irrigation control circuits
- Security, CCTV, fire, and alarm low-voltage loops
- Compatible control wiring where 24VAC surge protection is needed
When properly installed, the SP24AA can help reduce the risk of surge-related damage to control boards, transformers, relays, and connected low-voltage devices.
Installation Notes
- Series / inline installation required: The SP24AA is installed in line with the circuit being protected.
- Bidirectional design: Either side may be used as the input or output.
- Maintain continuity: Connect A to A and B to B through the surge protector.
- Ground connection: Connect the green ground lead to a proper equipment ground for best performance.
- Recommended spacing: Maintain at least 18 inches between the surge protector and the equipment being protected.
- Verify voltage before installation: This device is intended for compatible 24VAC circuits only.
Status and Service
The SP24AA is sealed and non-serviceable. There are no user-serviceable parts. Do not Hi-Pot test the device, as this may damage the surge protector.
Product Details
| Weight | 5 oz |
|---|---|
| Dimensions | 5.125 × 3.25 × 1.25 in |
| Continuous Current Rating | 5 |
| Enclosure Rating | Indoor |
| Current Type | AC |
| Operating Voltage (Vac) | 24 |
| Recommended Applications | Doorbell, HVAC, Thermostat |
Installation
Professional installation is recommended. Installation should be performed by a qualified, licensed professional in accordance with the product instructions, applicable electrical codes, and local requirements.
Always turn off power to the circuit and connected equipment before installation. Verify that power has been disabled using an appropriate voltage sensing device before working on the circuit.
24VAC Inline Installation Notes
- The SP24AA is designed for compatible 24VAC low-voltage control and signaling circuits only.
- Verify that the circuit is 24VAC before installation.
- Mount the surge protector securely in an accessible location.
- For best performance, keep wiring runs short and neat.
- The SP24AA is installed inline, or in series, with the circuit being protected.
- Cut the two conductors and route them through the surge protector so the device is in line with the protected circuit.
- Maintain continuity through the surge protector by connecting A to A and B to B.
- The unit is bidirectional, so either side may be used as the input or output side.
- Connect the green ground lead to a solid equipment grounding point. A low-impedance ground connection is critical for surge protection performance.
- Maintain at least 18 inches of wire between the surge protector and the protected equipment.
HVAC Control Board and Thermostat Wiring Example

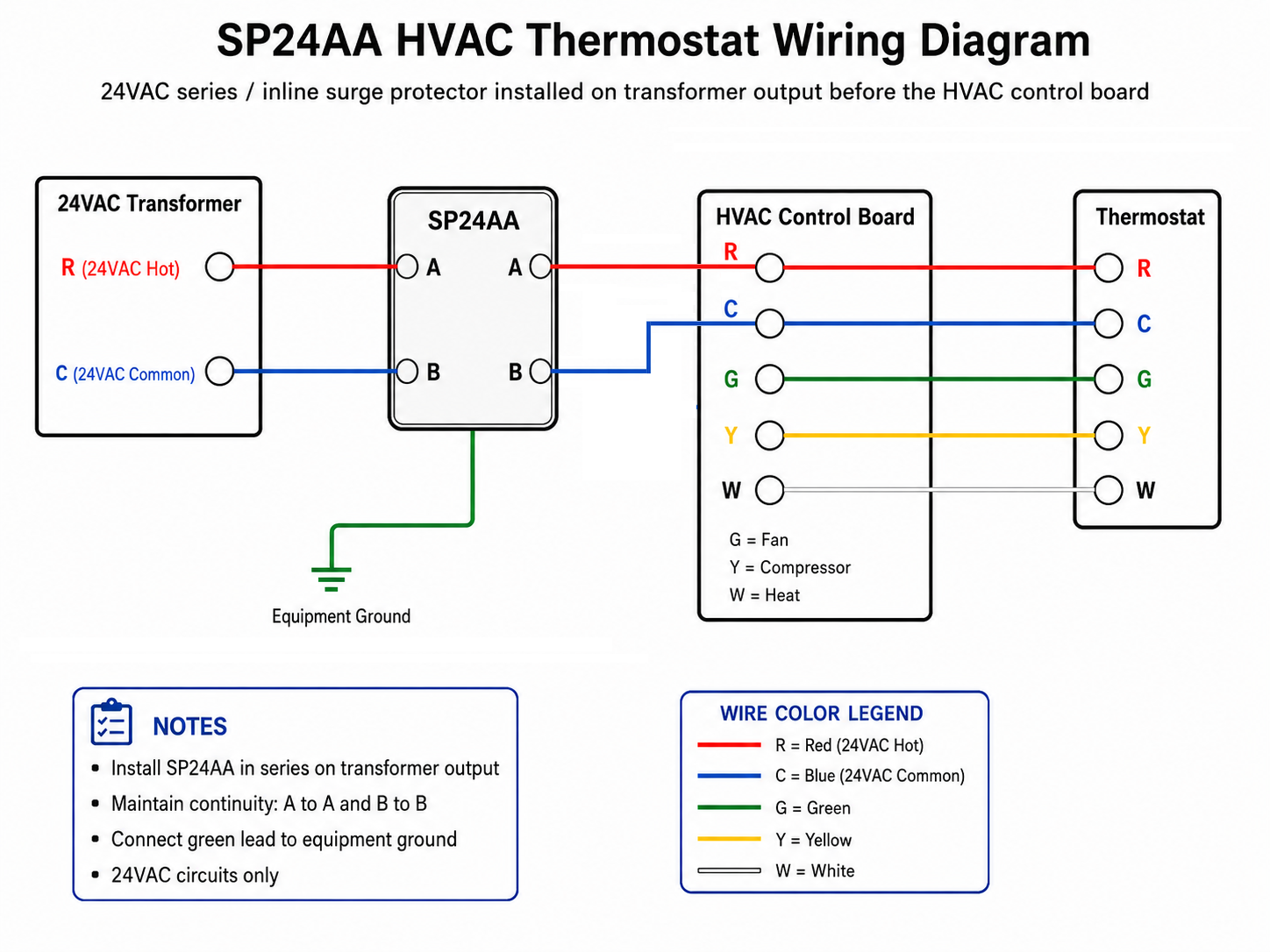

The diagram below shows a typical SP24AA installation on a 24VAC HVAC control circuit. The SP24AA is installed in series on the transformer R and C output before the HVAC control board. The thermostat remains wired directly to the HVAC control board.
Smart Doorbell Wiring Example

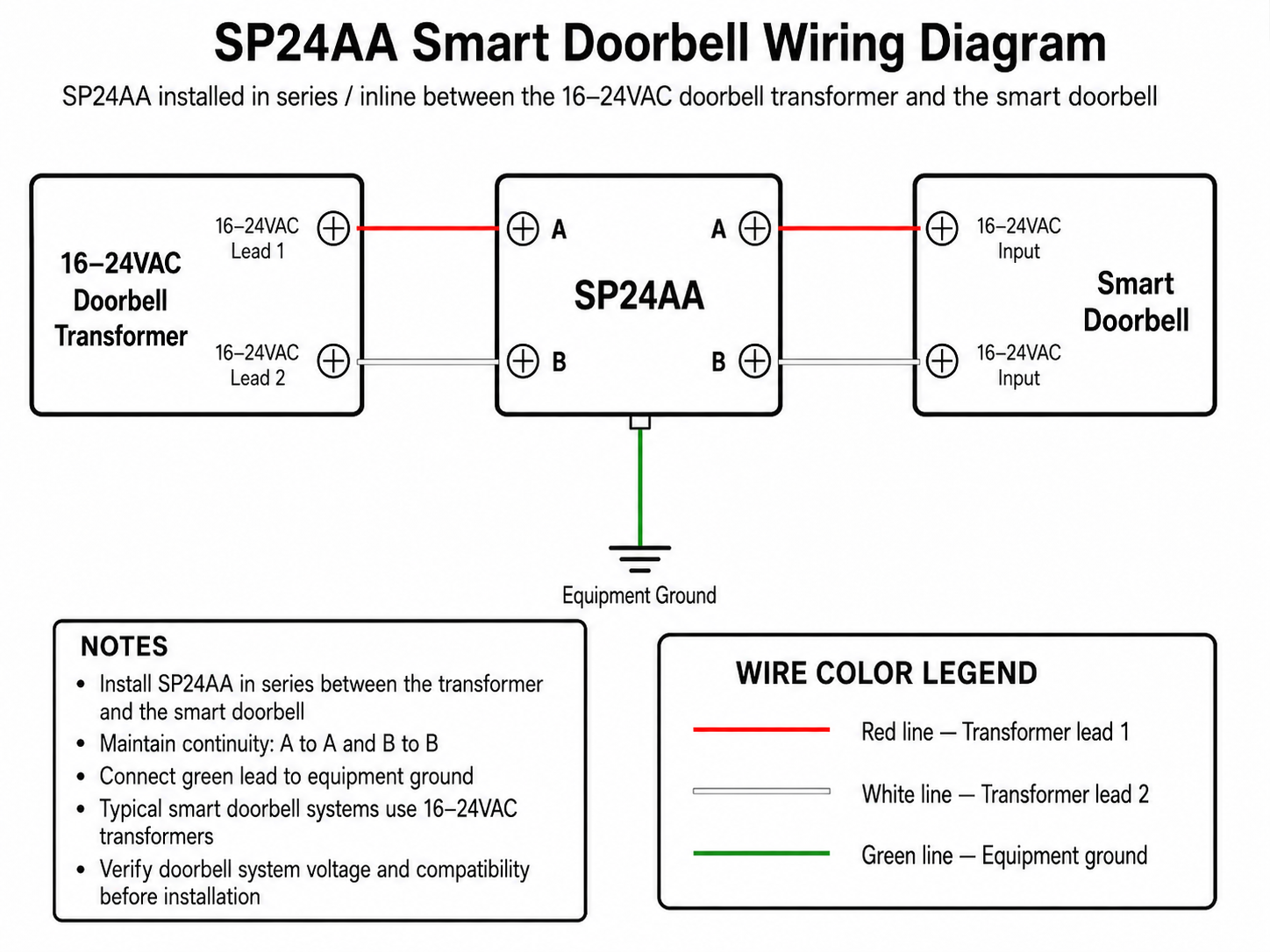

The diagram below shows a typical SP24AA installation on a low-voltage smart doorbell circuit. The SP24AA is installed in series between the 16–24VAC doorbell transformer and the smart doorbell. Connect the green ground lead to equipment ground.
Typical Applications
- HVAC control circuits and thermostats
- Air handler and furnace control boards
- Doorbell and smart doorbell transformers
- Security or CCTV power and control loops
- Fire, security, and other low-voltage control wiring
Final Check
Before restoring power, inspect all terminations for tightness and correct wiring. Verify A-to-A and B-to-B continuity, confirm the green ground lead is securely connected to equipment ground, and make sure all conductors are properly seated.
After installation is complete, restore power and verify normal equipment operation.
Service and Warranty Note
This product contains no user-serviceable parts. Do not open or tamper with the device. Tampering with the product may void the warranty.
Refer to the SP24AA installation instructions for complete wiring, spacing, grounding, troubleshooting, and product-specific installation requirements.
Warranty
Bad Wolf surge protection devices include a 5-year product warranty.
Eligible products may also include connected equipment warranty coverage when properly installed and registered according to the warranty terms.
Please review the full warranty terms for complete details, limitations, registration requirements, and coverage information.
FAQ
What is the SP24AA mainly used for?
The SP24AA is used to help protect single-pair, two-wire 24VAC low-voltage circuits from damaging overvoltage and surge events. Common applications include HVAC thermostat circuits, HVAC transformer secondary circuits, doorbell transformer circuits, access control, gate operators, security/alarm circuits, fire alarm/control circuits, and other compatible 24VAC control or signaling circuits.
What voltage is the SP24AA designed for?
The SP24AA is designed for 24VAC circuits only. It should not be used on DC circuits or AC circuits above 24 volts.
What does the 2.5KA rating mean?
The 2.5KA rating refers to the surge current capacity of the device. The SP24AA is designed to help protect compatible 24VAC circuits from damaging surge and overvoltage events when properly installed.
What type of circuits can the SP24AA protect?
The SP24AA is designed for one single-pair, two-wire 24VAC circuit. It has two input wire connections and two output wire connections.
Can the SP24AA be used on HVAC thermostat circuits?
Yes. The SP24AA is a good option for compatible 24VAC HVAC thermostat circuits, HVAC transformer secondary circuits, and related low-voltage control wiring.
Can the SP24AA be used on doorbell transformer circuits?
Yes. The SP24AA may be used on compatible 24VAC doorbell transformer circuits where the voltage and wiring match the product specifications.
Can the SP24AA be used for access control, gate operators, or security circuits?
Yes. The SP24AA may be used on compatible 24VAC access control, gate operator, security, alarm, and low-voltage control circuits that match the product ratings.
How is the SP24AA different from the SP24A24AA?
The SP24AA is designed for one single-pair, two-wire 24VAC circuit. The SP24A24AA is designed for two-pair or four-wire 24VAC applications, such as two separate two-wire circuits or one four-wire circuit.
How is the SP24AA wired?
The SP24AA uses screw terminals and is installed inline between the 24VAC source and the protected load. For example, it may be installed between a 24VAC transformer and the thermostat, control board, doorbell circuit, or other compatible low-voltage device being protected.
Does the SP24AA connect to ground?
The SP24AA includes an optional ground wire pigtail. The ground connection may be used when appropriate for the installation and system design.
Where should the SP24AA be installed?
The SP24AA is commonly installed near the transformer, control board, thermostat wiring, doorbell transformer, control panel, equipment being protected, building entry point, outdoor equipment connection, or another location where surge protection is needed on a compatible 24VAC circuit.
Does the SP24AA have status lights?
No. The SP24AA does not have status indicator lights.
Can the SP24AA be installed outdoors?
The SP24AA is intended for indoor installation only. If used near outdoor equipment, it should be installed in a suitable protected indoor or enclosed location according to the product instructions and applicable requirements.
Does the SP24AA provide short circuit or overcurrent protection?
No. The SP24AA provides overvoltage and surge protection only. It does not provide short circuit or overcurrent protection. The protected circuit should have appropriate circuit protection as required for the system.
Can the SP24AA be used on DC circuits?
No. The SP24AA is designed for 24VAC circuits only and should not be used on DC applications.
Can the SP24AA be used on 120VAC or higher-voltage AC circuits?
No. The SP24AA should not be used on 120VAC circuits or any AC circuit above 24 volts. Using the device outside its rating can create an unsafe condition and damage the product or connected equipment.
Who should install this product?
This product should be installed by a qualified technician, electrician, low-voltage installer, HVAC contractor, fire alarm technician, security technician, doorbell installer, or other qualified person familiar with the circuit and equipment being protected.
Does this product include a warranty?
Bad Wolf surge protection devices include a 5-year product warranty. Eligible products may also include connected equipment warranty coverage when properly installed and registered according to the warranty terms.
Specifications
SP24AA Specifications
| Model Number | SP24AA |
|---|---|
| Product Type | 24VAC single-pair low-voltage surge protector |
| Device Type | Low-voltage SPD, series / inline installation |
| Application | 24VAC control, signaling, and low-voltage equipment circuits |
| Circuit Protected | Single pair through Terminal A and Terminal B |
| Nominal Operating Voltage | 24VAC |
| MCOV | 33V |
| Clamping Voltage | 39V |
| Maximum Continuous Current | 5A |
| Surge Current Rating | 2.5kA |
| Protection Modes | Differential mode, line-to-line, and common mode, line-to-ground |
| Terminal Wire Range | 30–14 AWG |
| Operating Temperature | -31°F to +158°F (-35°C to +70°C) |
| Recommended Spacing to Protected Equipment | Minimum 18 inches |
| Ground Connection | Green ground lead provided; connect to equipment ground |
| Installation Direction | Bidirectional; either side may be used as IN or OUT |
| Serviceability | No user-serviceable parts |
Wiring Notes
- The SP24AA protects one pair of conductors through Terminal A and Terminal B.
- Maintain continuity through the device by connecting A to A and B to B.
- The unit is bidirectional, so either side may be used as the input or output side.
- Connect the green ground lead to equipment ground.
- Maintain at least 18 inches of wire between the surge protector and the protected equipment.
Specifications are subject to change. Refer to the product label and installation instructions for complete product-specific ratings and installation requirements.
