Surge Protector 120V 65kA SP120V65KA
$229.00
- Use on 120VAC US household style electrical sockets
- Works on Generators, RVs as well as your home
- 65kA transient surge current rating
- 15A continuous current rating (Load device rating)

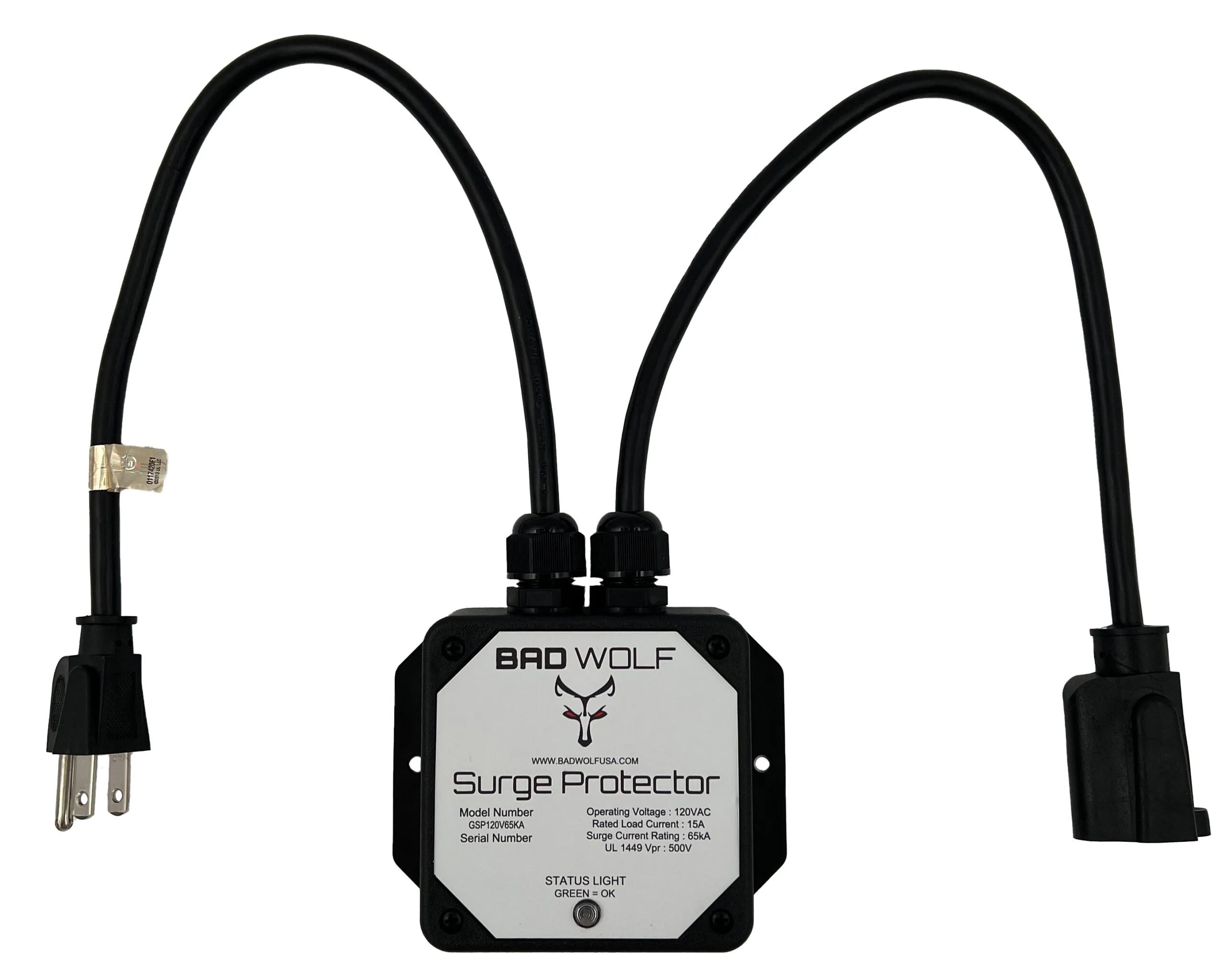

- Plug and play design

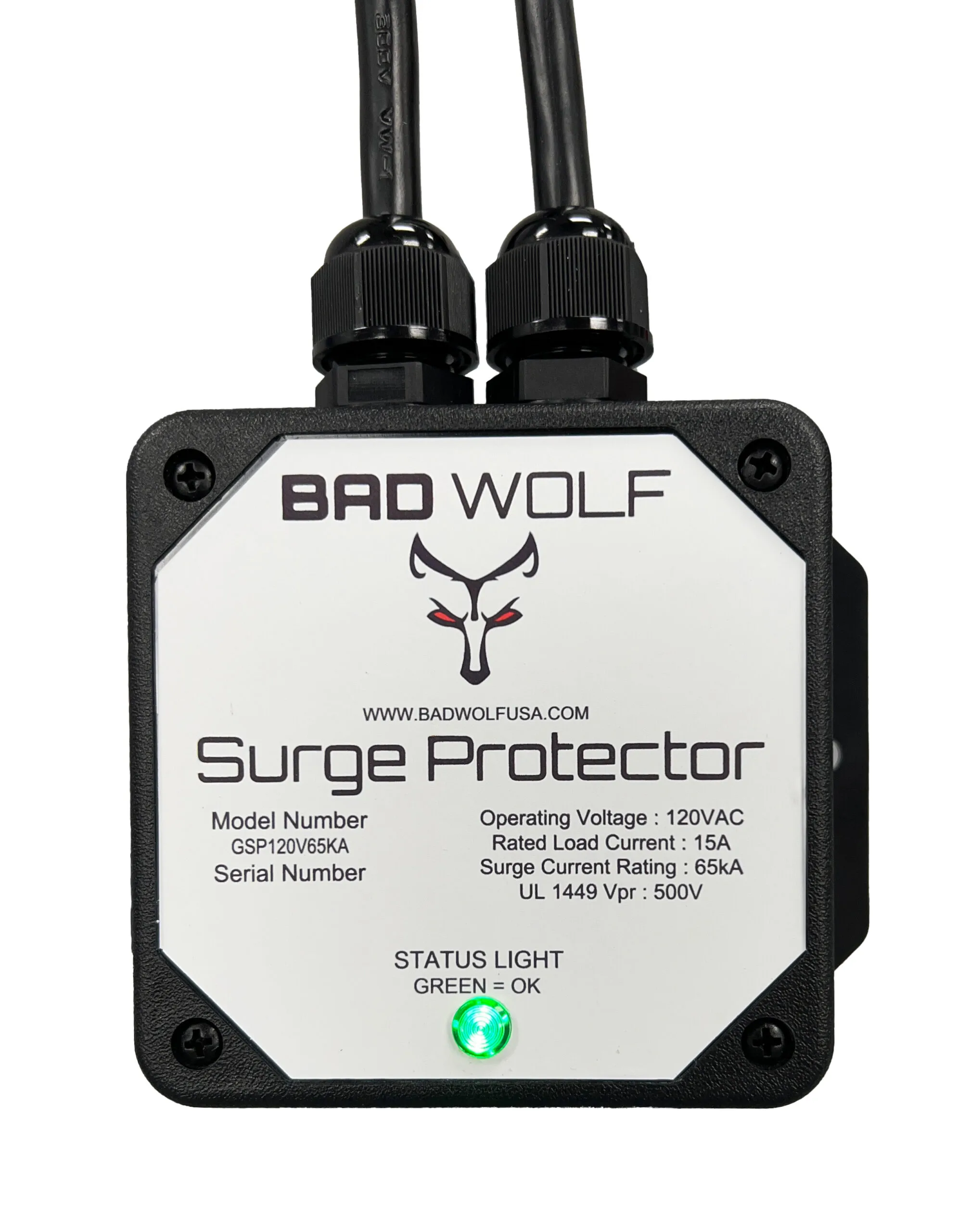

- Status indicator (On = ok)
- Protects against all types of Transient Voltage surges (Lightning, Grid, EMP, CME solar flare, and more
- Can be used with an extension cord or multiplug adapter as long as the maximum 15 A load current is maintained
- 3ns response time
- Protects electrical circuit even when power is not applied
- Small design can be mounted just about anywhere

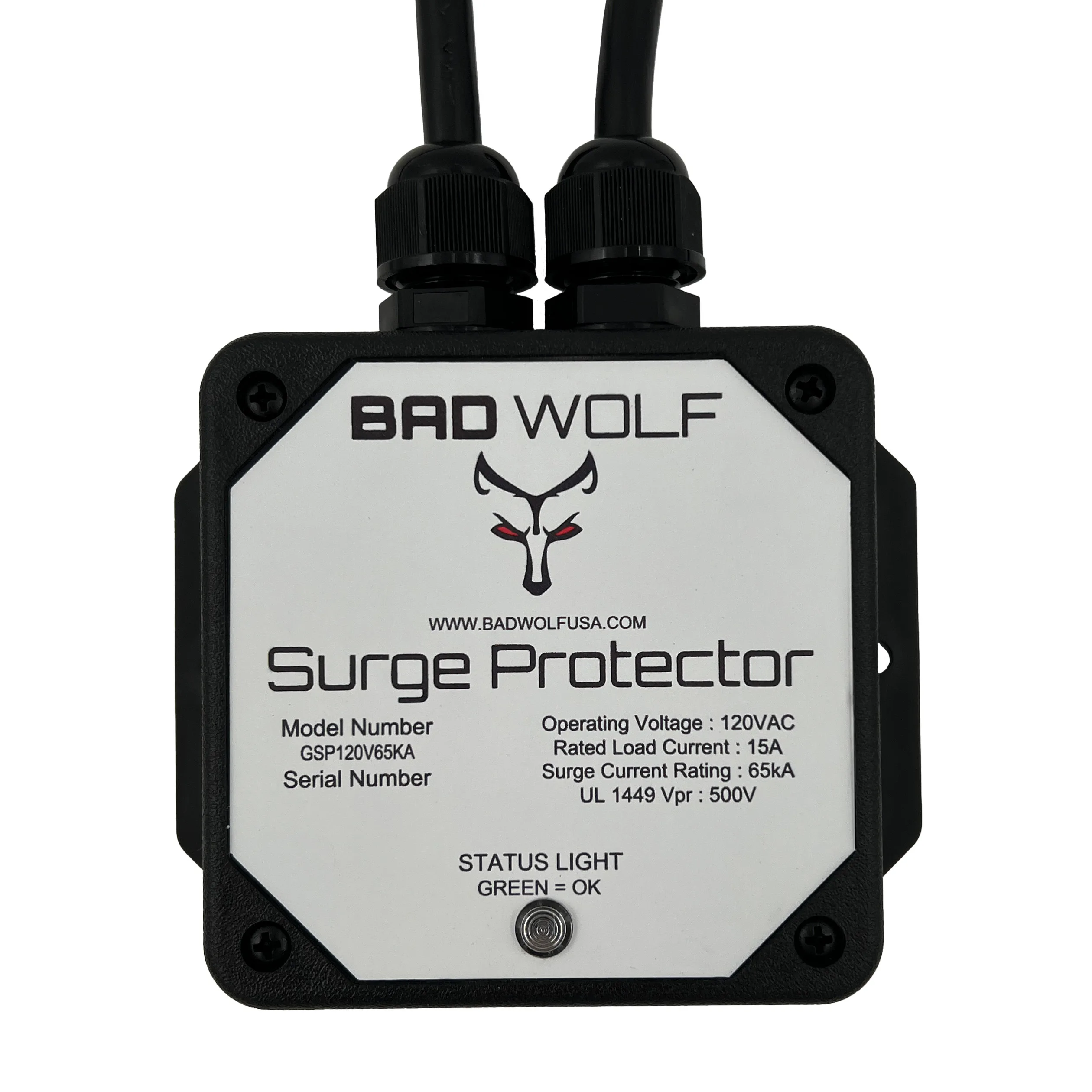

The Bad Wolf SP120V65KA Surge Protector prevents transient voltage surges from causing damage to connected electrical equipment for both residential and commercial applications. The SP120V65KA provides 65,000 Amps of surge protection at 120VAC with reactions speeds faster than 3 billionth of a second. The SP120V65KA work by diverting the overvoltage surges away from the the protected devices and shunting them to ground in fractions of a second (Much faster than a typical current controlled protection device). Protect connected devices from damage due to Lightning, Solar Flare, EMP (All phases), Grid Voltage Surges, and more. Must be connected to an electrical circuit that has a breaker or fuse, this device does not protect against load short circuit conditions.
Product Details
| Weight | 9 oz |
|---|---|
| Dimensions | 4.25 × 3.25 × 1.25 in |
| Application | Commercial, Farm, Generator, Home, Irrigation, Marine, RV, Solar, Wind |
| Connection Type | NEMA 5-15 |
| Continuous Current Rating | 15 |
| Surge Type Category Rating | EMP (E1, E2 and E3 Phase), Solar Flare (CME) |
| Environmental Rating | Indoor |
| Service Type | US Household 120V with ground, Single Phase |
| SPD Classification | Type 3 |
| Surge Current Rating (A) | 65kA |
| Type of Electrical Current | AC |
| Voltage (Vac) | 120 |
| Product Dimensions | 4.25"X3.25"X1.25" |
| Product Weight | 9oz |
Specifications
Review the product details and product description for voltage, surge current rating, connection type, enclosure rating, wiring details, certifications, and other technical information.
For detailed product-specific ratings, refer to the specifications listed on this product page and any available product documentation.
Installation
Installation should be performed by a qualified electrician, licensed contractor, or qualified installer in accordance with the product instructions, applicable electrical codes, and local requirements.
Always disconnect power before installation and verify the product is suitable for the electrical system where it will be installed.
Warranty
Bad Wolf surge protection devices include a 5-year product warranty.
Eligible products may also include connected equipment warranty coverage when properly installed and registered according to the warranty terms.
Please review the full warranty terms for complete details, limitations, registration requirements, and coverage information.
