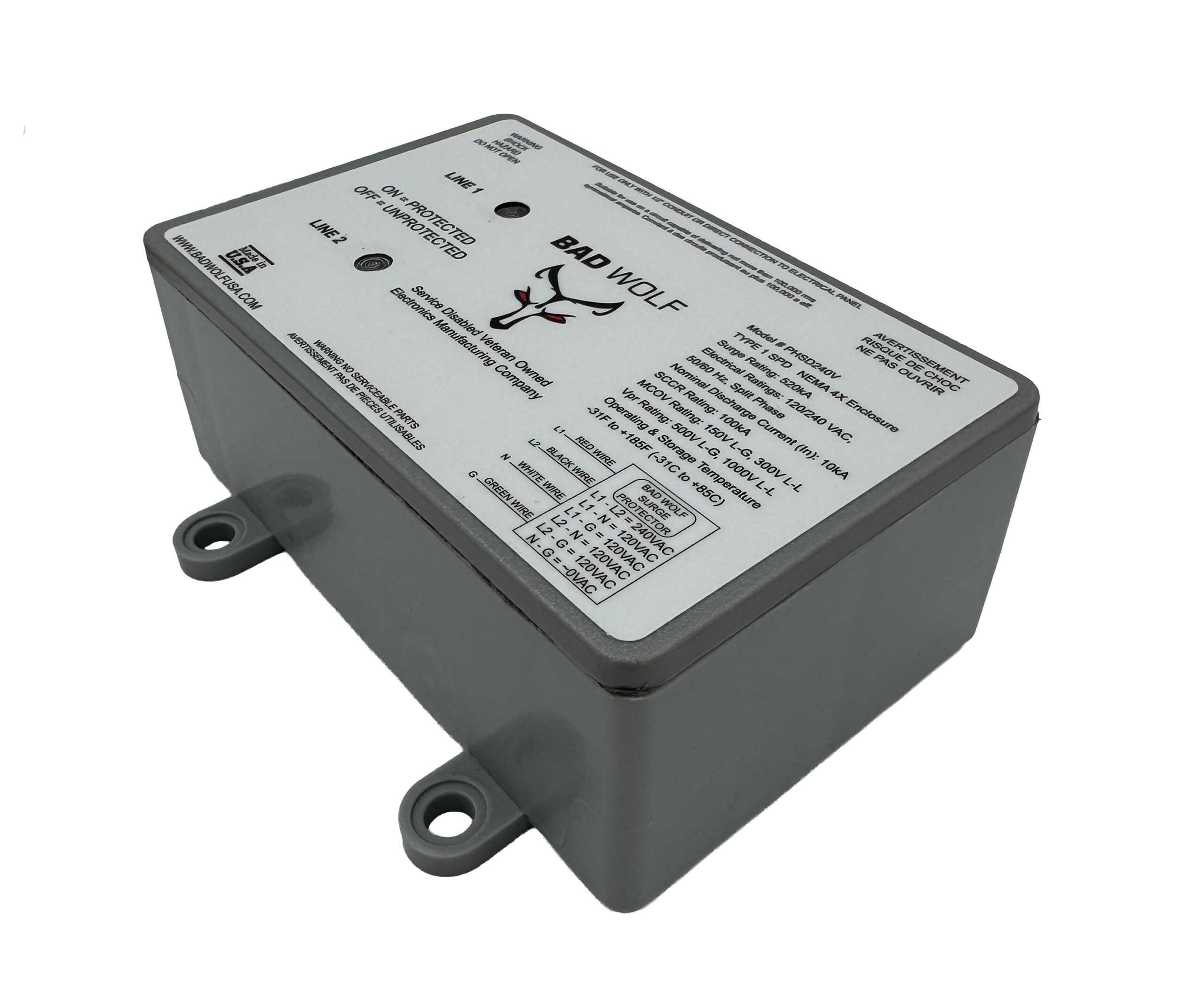

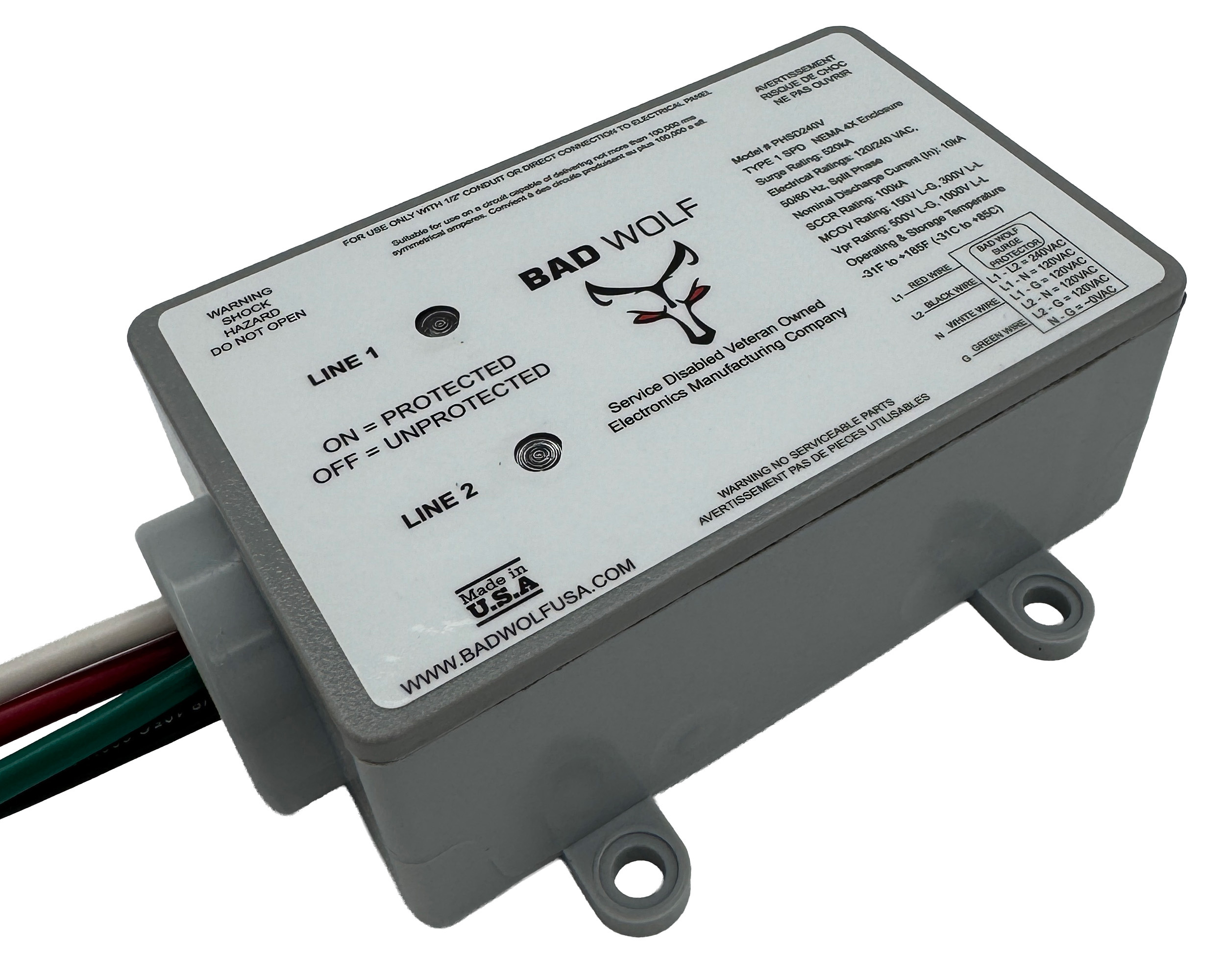

PHSD240V Pro Whole House Surge Protector with EMP Protection – 120/240V Split Phase – 520kA – Type 1 SPD
$449.00
The PHSD240V is a Pro Series Type 1 whole-house surge protector with EMP-related surge protection for compatible 120/240V split-phase electrical systems. It is designed to provide higher-capacity panel-level protection than the HSD240V, helping protect residential, light commercial, off-grid, and critical electrical systems from damaging voltage transients caused by lightning-related surges, utility switching, load switching, and EMP-related surge events.
Key Features
- Pro Series whole-house surge protection for compatible 120/240V split-phase panels
- 520kA surge current capacity
- Type 1 SPD for service entrance or panel applications
- Helps protect against EMP-related surge events, CME-related disturbances, solar flare-related transients, lightning-related surges, and utility switching transients
- 6-mode protection: L1-L2, L1-N, L2-N, L1-G, L2-G, N-G
- NEMA 4X / IP67 enclosure for indoor or outdoor installation
- 36 inch pre-wired leads for flexible mounting and clean wire routing
- Two green status LEDs: Line 1 ON = protected, Line 2 ON = protected; OFF = that line is not protected
PHSD240V Pro Whole House Surge Protector with EMP Surge Protection
The Bad Wolf PHSD240V is a Pro Series Type 1 whole-house surge protector designed for compatible 120/240V split-phase electrical systems. It is the higher-capacity version of the HSD240V and is built to help protect residential, light commercial, off-grid, and critical electrical systems from damaging voltage transients caused by lightning-related surges, utility switching, load switching, and EMP-related surge events.
With a 520kA surge current capacity, 6-mode protection, and a rugged NEMA 4X / IP67 enclosure, the PHSD240V provides high-capacity panel-level surge protection for applications where added surge protection margin is desired.
Pro Series Whole-House Panel Protection
The PHSD240V is intended for installation at a main electrical panel, subpanel, disconnect, service equipment, or other approved electrical equipment location. It helps reduce the risk of surge-related damage to connected equipment such as HVAC systems, appliances, electronics, smart home devices, garage equipment, backup power equipment, pumps, and other sensitive electrical loads.
- Pro Series Type 1 SPD for service entrance or panel applications
- Compatible with 120/240V split-phase systems
- 520kA surge current capacity
- 6-mode protection: L1-L2, L1-N, L2-N, L1-G, L2-G, N-G
- 100kA SCCR for high fault-current environments when properly applied
- NEMA 4X / IP67 enclosure for indoor or outdoor installation
- 36 inch pre-wired leads for flexible mounting and clean wire routing
Designed for EMP-Related Surge Events
The PHSD240V is designed to help protect against damaging transient surge events, including lightning-related surges, utility switching transients, load switching transients, and surge events associated with EMP, CME, and solar flare-related disturbances.
EMP, CME, and solar flare-related electrical disturbances can create high-energy transient events on electrical systems and connected equipment. The PHSD240V is intended to provide added panel-level surge protection as part of a broader electrical protection strategy.
No surge protection device can guarantee protection from every surge event or every electromagnetic disturbance. Proper installation, grounding, bonding, and system design are critical for best performance.
Two-Line Status Indicator System
The PHSD240V includes two green status LEDs, with one indicator for each incoming line.
- Line 1 Green LED ON: Line 1 is protected / normal operation
- Line 2 Green LED ON: Line 2 is protected / normal operation
- Line 1 Green LED OFF: Line 1 is not protected
- Line 2 Green LED OFF: Line 2 is not protected
If one green LED is off, the corresponding line is no longer protected. If both green LEDs are off, both lines are no longer protected and the unit should be inspected and replaced as required.
Built for Higher-Capacity Applications
The PHSD240V is well suited for applications where higher surge current capacity and rugged environmental protection are desired. Its pre-wired design allows the unit to be mounted near the electrical panel or service equipment while keeping conductor runs short and organized.
Common applications include residential service panels, light commercial panels, HVAC equipment protection, smart home systems, backup power systems, off-grid power systems, garage equipment, pump systems, appliance protection, and general whole-house surge protection when properly applied.
Installation Overview
Professional installation is recommended. The PHSD240V should be installed by a qualified electrical professional in accordance with the product instructions, product label, applicable electrical codes, and local requirements.
For best performance, install the surge protector as close to the point of connection as practical and keep all conductors as short and straight as possible.
- Black / Red: L1 / L2 split-phase conductors
- White: Neutral
- Green: Equipment Ground
Listings, Testing & Compliance
- ETL Listed to UL 1449 5th Edition
- Certified to CSA C22.2 No. 269.1 and 269.2
- FCC 47 CFR Part 15 tested
- ICES-003 tested
- Suitable for circuits not exceeding 100kA RMS symmetrical amps
- 5-year limited warranty
Refer to the Specifications and Installation tabs for complete product ratings, wiring information, and installation requirements.
Product Details
| Weight | 19 oz |
|---|---|
| Dimensions | 5 × 4 × 2 in |
| Operating Voltage (Vac) | 120/240V |
| Electrical System | 120/240V Split Phase |
| Current Type | AC |
| SPD Type | Type 1, Type 2 |
| Recommended Applications | Backup Power, Critical Equipment, Electrical Panel, Home, HVAC, Light Commercial Panel, Off-Grid, Residential Panel, Service Entrance, Smart Home, Whole House |
| Installation / Connection Type | Pre-wired Leads, Hardwire |
| Surge Current Capacity | 520kA |
| Surge Events Protected Against | CME-related disturbances, EMP-related surge events, Lightning-related surges, load switching transients, motor-generated surges, solar flare-related transients, utility switching transients |
| Enclosure Rating | Indoor, NEMA 4X, Outdoor |
| Product Dimensions | 5 × 4 × 2 in |
| Product Weight | 20 oz |
Installation
Professional installation is recommended. Installation should be performed by a qualified electrician, licensed contractor, or qualified installer in accordance with the product instructions, applicable electrical codes, and local requirements.
Always disconnect power before installation and verify that the PHSD240V is suitable for the electrical system where it will be installed.
Panel Installation Notes
- Install the surge protector at the main service panel, subpanel, disconnect, or other approved electrical equipment location.
- This model is housed in a PVC FSE-style enclosure with 1/2" rigid conduit connection points for connection to the electrical equipment.
- Rigid PVC conduit, conduit adapters, fittings, and any additional connectors required for the installation are supplied by the installer or customer.
- Mount the surge protector securely and make sure all conduit connections are properly installed and tightened for the enclosure and installation location.
- Connect the conductors according to the product wiring diagram and applicable electrical code requirements.
- Use an appropriately rated breaker, disconnect, or connection method as required by the product instructions and local code.
- Keep all conductors as short and straight as possible between the surge protector and the point of connection.
- Do not sharply bend, coil, or unnecessarily extend the wires.
- Use proper fittings, strain relief, and enclosure practices for the installation location.
Status Indicator
After installation, restore power and verify both green status lights.
- Line 1 green light on: Line 1 protection is functioning properly.
- Line 2 green light on: Line 2 protection is functioning properly.
- Both green lights on: The surge protector is functioning properly and the electrical system is protected.
- One green light off: The surge protector may be damaged on that line and may only be partially protecting the electrical system. The unit should be inspected and replaced if protection has been lost.
- Both green lights off: The surge protector may be completely damaged, or no power may be applied to the surge protector. The electrical connections and electrical service should be inspected before placing the system back into service.
Refer to the product label and installation instructions for the correct wiring configuration, breaker or connection requirements, status light behavior, and product-specific installation details.
Warranty
Bad Wolf surge protection devices include a 5-year product warranty.
Eligible products may also include connected equipment warranty coverage when properly installed and registered according to the warranty terms.
Please review the full warranty terms for complete details, limitations, registration requirements, and coverage information.
FAQ
What is the PHSD240V mainly used for?
The PHSD240V is commonly used as a premium high-capacity whole-house surge protector for residential, light commercial, garage, workshop, and small business 120/240V split-phase electrical systems.
Where is the PHSD240V installed?
The PHSD240V is typically installed at the main electrical panel, service equipment, or another compatible panel location to help protect connected equipment throughout the electrical system from damaging power surges.
What type of electrical system is this surge protector designed for?
The PHSD240V is designed for 120/240V split-phase electrical systems commonly used in homes, garages, workshops, small businesses, and light commercial applications.
Can the PHSD240V be used as a whole-house surge protector?
Yes. The PHSD240V is designed for whole-house surge protection applications when properly installed on a compatible 120/240V split-phase electrical system.
How is the PHSD240V different from the HSD240V?
The PHSD240V is the higher-capacity version of the HSD240V. Both products are designed for the same type of 120/240V split-phase applications, but the PHSD240V has a 520KA surge current rating compared to the 260KA surge current rating of the HSD240V.
What does the 520KA rating mean?
The 520KA rating refers to the surge current capacity of the device. The PHSD240V is designed for customers who want one of Bad Wolf’s highest-capacity whole-house surge protection options for compatible 120/240V split-phase electrical systems.
Does the PHSD240V protect against lightning?
The PHSD240V is designed to help protect against surge events caused by indirect lightning activity. No surge protector can guarantee protection from a direct lightning strike, but a properly installed surge protective device can help reduce the risk of damage from surge energy entering the electrical system.
Does the PHSD240V provide EMP, CME, or solar flare protection?
Yes. The PHSD240V is designed to help protect against damaging surge activity associated with electromagnetic disturbance events, including EMP, CME, and solar flare related electrical disturbances. Proper installation, grounding, and bonding are important for effective protection.
Should I choose the PHSD240V or the HSD240V?
The HSD240V is a strong high-capacity whole-house surge protection option with a 260KA surge current rating. The PHSD240V is the higher-capacity option with a 520KA surge current rating for customers who want Bad Wolf’s highest protection level in this product group.
What do the two green LED indicator lights mean?
The PHSD240V has two green LED status lights: one for Line 1 and one for Line 2. When a green light is on, that line’s protection is functioning correctly. If one of the green lights is off, that side’s protection has been damaged and the surge protector should be replaced.
Does the PHSD240V have red indicator lights?
No. The PHSD240V does not use red indicator lights. It uses two green LED status lights to show the protection status for Line 1 and Line 2.
Is this a Type 1 surge protective device?
Yes. The PHSD240V is a Type 1 surge protective device, which allows it to be installed on the line side or load side of the service disconnect when installed in accordance with the product instructions and applicable electrical codes.
Does this surge protector need to be installed with a circuit breaker?
This surge protector is a Type 1 surge protective device and does not have to be installed in conjunction with a circuit breaker when installed as a Type 1 SPD in accordance with the product instructions and applicable electrical codes.
If this surge protector is installed as a Type 2 SPD on the load side of the service disconnect, Bad Wolf recommends using a 20 amp double-pole circuit breaker unless otherwise required by the authority having jurisdiction, local code, or the specific installation conditions.
Can this surge protector be installed outdoors?
Yes. The PHSD240V uses a durable enclosure suitable for indoor or outdoor installation when installed according to the product instructions and applicable electrical codes.
Who should install this product?
This product should be installed by a qualified electrician, licensed contractor, or qualified installer familiar with electrical panels, service equipment, grounding, bonding, and surge protective devices.
Does this product include a warranty?
Bad Wolf surge protection devices include a 5-year product warranty. Eligible products may also include connected equipment warranty coverage when properly installed and registered according to the warranty terms.
Specifications
PHSD240V Specifications
| Model Number | PHSD240V |
|---|---|
| Product Type | Pro Series high-capacity whole-house surge protection device with EMP-related surge protection |
| SPD Type | Type 1 |
| Electrical System | 120/240V split-phase |
| Frequency | 50/60 Hz |
| Current Type | AC |
| Surge Current Capacity | 520kA |
| Short-Circuit Current Rating (SCCR) | 100kA RMS symmetrical |
| Maximum Continuous Operating Voltage (MCOV) | 150 VAC L-G; 300 VAC L-L |
| Voltage Protection Rating (VPR) | 500V L-G; 1000V L-L |
| Protection Modes | L1-L2, L1-N, L2-N, L1-G, L2-G, N-G |
| Surge Events Protected Against | Lightning-related surges, utility switching transients, load switching transients, motor-generated surges, EMP-related surge events, CME-related disturbances, and solar flare-related transients |
| Connection Type | Hardwire, pre-wired leads |
| Wiring | 36 inch pre-wired leads |
| Typical Wire Connections | Black / Red = L1 / L2, White = Neutral, Green = Equipment Ground |
| Enclosure Rating | NEMA 4X / IP67 |
| Installation Environment | Indoor or outdoor |
| Status Indicators | Two green LED indicators, one for Line 1 and one for Line 2 |
| LED Status | Line 1 Green ON = Line 1 protected; Line 2 Green ON = Line 2 protected; LED OFF = corresponding line is not protected |
| Product Dimensions | 5 × 4 × 2 in |
| Product Weight | 20 oz |
| Listings | ETL Listed to UL 1449 5th Edition; certified to CSA C22.2 No. 269.1 and 269.2 |
| EMC Testing | FCC 47 CFR Part 15 tested; ICES-003 tested |
| Warranty | 5 years |
