Mini EMP Defender 12V With Test Button MEMPT12V

$299.00

  • Use on 12V DC battery electrical systems only
  • Unique 3 stage surge protection
  • Simple 2 wire installation
  • 150kA surge current rating
  • Fast 3ns response time
  • Protects against Transient Voltage spikes from EMP and CME (Solar Flare)
  • Waterproof
  • Protects against reverse polarity surges as well
  • Prevents the electrical circuit even if power is not applied
  • Test button to illuminate Status lights provide user feedback (on = ok) (Device must be powered for status lights to work)
SKU: MEMPT12V Category:

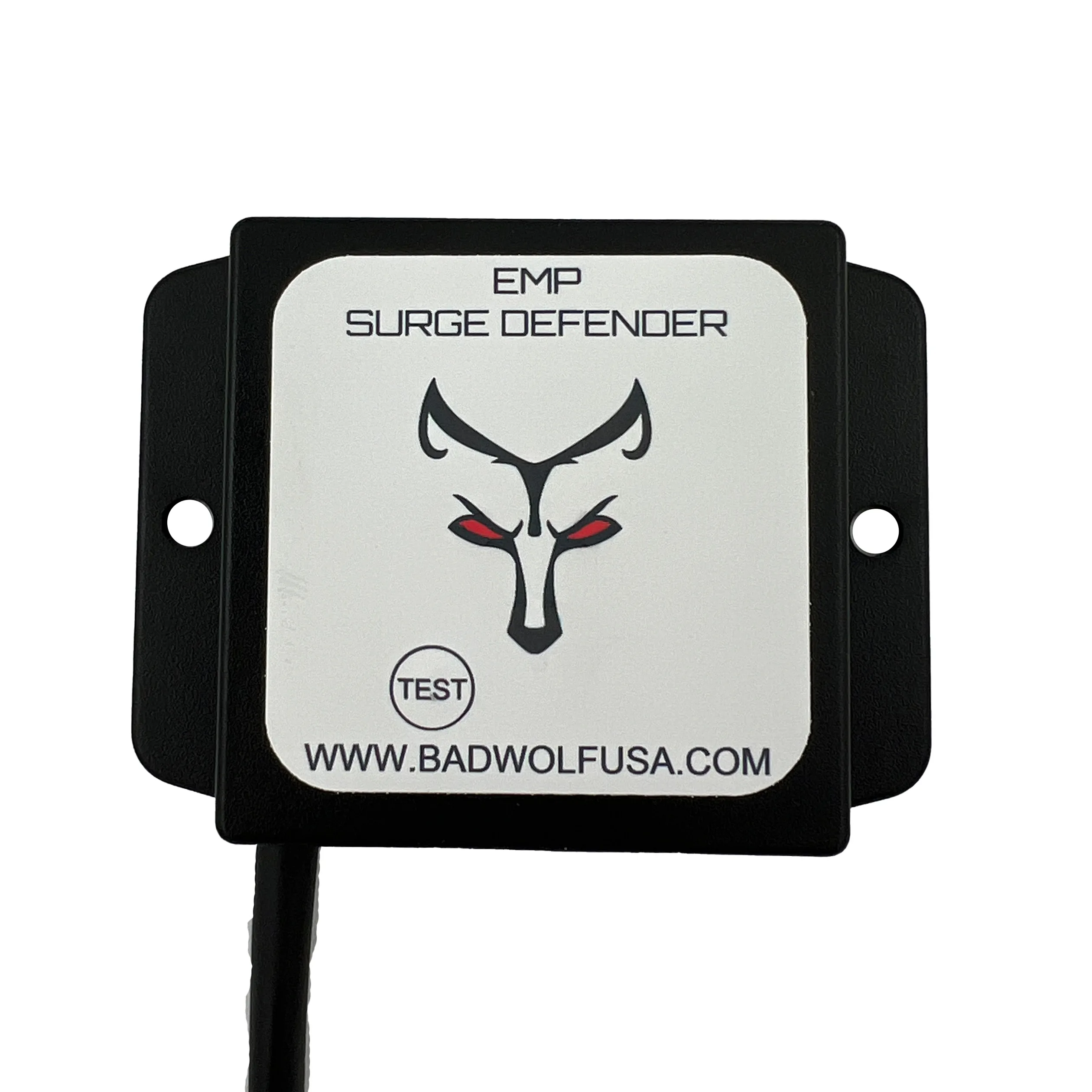

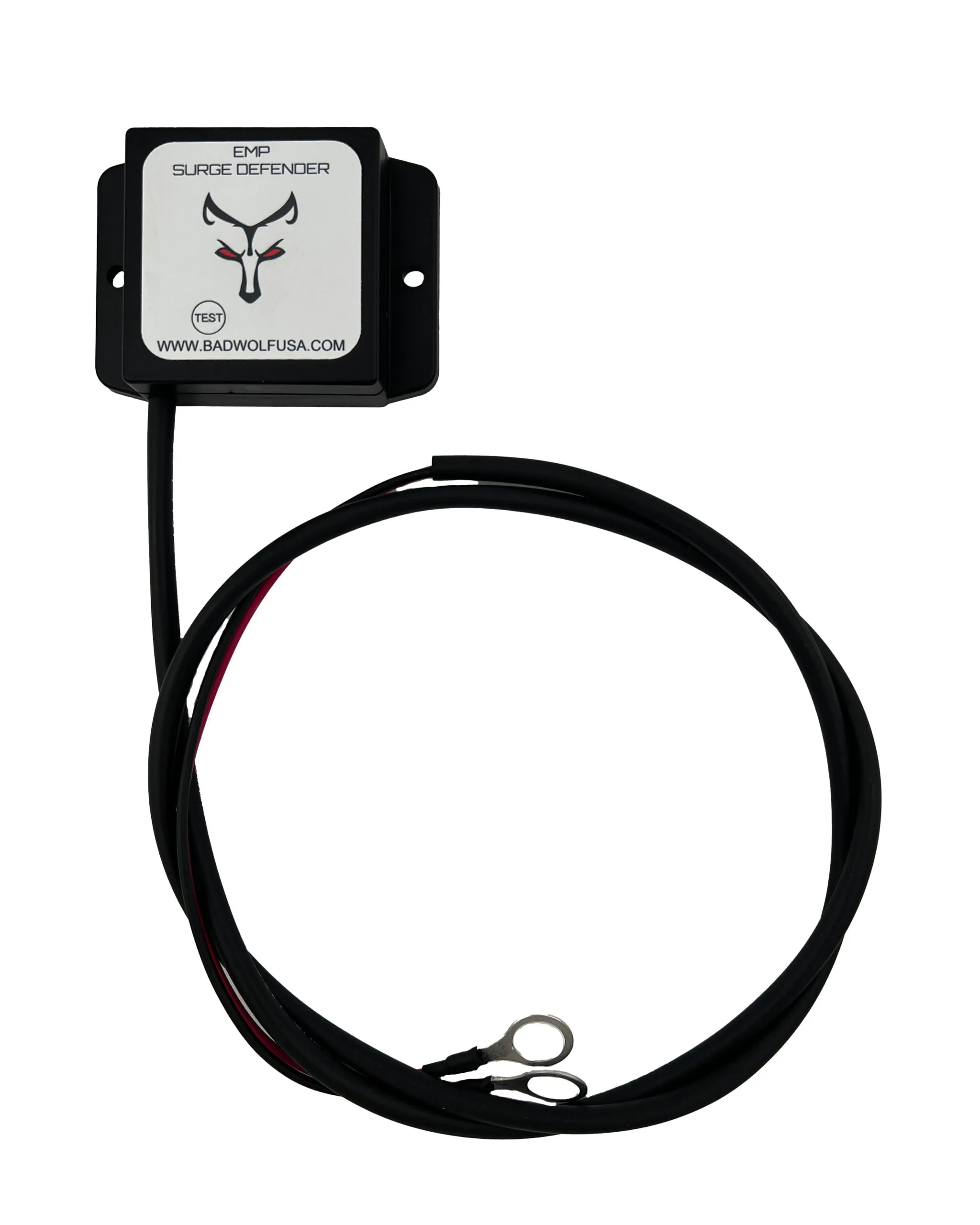

Mini EMP Defender 12V with test button

Designed with a test button so that that the status indicator lights do not have a drain on a battery electrical system. Great for use on Generators, equipment with small DC batteries or systems that do not get recharged on a regular bases.

3 stage protection device designed to protect DC battery electrical systems ONLY (Please verify correct application before ordering).

This device is rated to protect against EMP, ESD, and CME damage. The surge protector works like a flood control gate on a lake. On a lake once the water level reaches a maximum level the extra water is diverted and the lake level is maintained at a safe level. The surge protector does this by shunting the extra voltage away from your electrical circuit allowing it to operate as normal.

Additional information

Weight 3 oz
Dimensions 2.75 × 2 × 0.75 in
Application

ATV, UTV, Motorcycle and more.., Drone, Farm, Generator, Marine, RV, Solar, Vehicle, Wind
Compliance

MIL-STD
Connection Type

Ring Terminal
EM Rating

EMP (E1, E2 and E3 Phase), Solar Flare (CME)
Environment of Use

Indoor, Outdoor
Form Factor

Surface Mount
Service Type

DC Battery, DC Electrical Circuit
Surge Current Rating (A)

150kA
Voltage (Vdc)

12
Type of Surge Protection

DC
Product Dimensions

2.75"X2"X0.75"
Product Weight

3oz

How long are the wires?

Answer: 36"

Will this work on a motorcycle?

Answer: This device will work on any 12V DC battery system

Why does this have a test button?

Answer: The products status indicators do not come on until the button is pushed to prevent discharging batteries over time.
