MAX EMP DEFENDER 24V GEN2 MAXEMP24V
$449.00
- Use on 24V DC battery electrical systems only
- Unique 3 stage surge protection with reverse polarity protection
- 500kA surge current rating (Highest in the industry)
- Fast 3ns response time
- Class leading 8 awg wire capable of handling the biggest surges
- Protects against all Transient Voltage spikes including Lightning, EMP and Solar Flare
- Green Light = Protected, the surge protector is monitoring your electrical system
- Red Light = Unprotected, the surge protector is damaged and needs to be replaced
- Overwatch Protection Circuit
Max EMP Defender 24V Gen 2
3 stage protection device designed to protect DC battery electrical systems ONLY (Please verify correct application before ordering).
This device is rated to protect against EMP, ESD, CME, and Lightning damage. The surge protector works like a flood control gate on a lake. On a lake once the water level reaches a maximum level the extra water is diverted and the lake level is maintained at a safe level. The surge protector does this by shunting the extra voltage away from your electrical circuit allowing it to operate as normal.
Product Details
| Weight | 10 oz |
|---|---|
| Dimensions | 5.5 × 3.25 × 2 in |
| Application | Commercial, Drone, Farm, Irrigation, Marine, Solar, Vehicle, Wind |
| Connection Type | Ring Terminal |
| Surge Type Category Rating | EMP (E1, E2 and E3 Phase), Solar Flare (CME) |
| Environmental Rating | Indoor, Outdoor |
| Product Dimensions | 5.5"X3.25"X2" |
| Product Weight | 10oz |
| Service Type | DC Battery |
| Surge Current Rating (A) | 500kA |
| Type of Electrical Current | DC |
| Voltage (Vdc) | 24 |
Specifications
Review the product details and product description for voltage, surge current rating, connection type, enclosure rating, wiring details, certifications, and other technical information.
For detailed product-specific ratings, refer to the specifications listed on this product page and any available product documentation.
Installation
Installation should be performed by a qualified electrician, licensed contractor, or qualified installer in accordance with the product instructions, applicable electrical codes, and local requirements.
Always disconnect power before installation and verify the product is suitable for the electrical system where it will be installed.
Warranty
Bad Wolf surge protection devices include a 5-year product warranty.
Eligible products may also include connected equipment warranty coverage when properly installed and registered according to the warranty terms.
Please review the full warranty terms for complete details, limitations, registration requirements, and coverage information.
FAQ
What is the MAXEMP24V mainly used for?
The MAXEMP24V is designed to help protect 24VDC battery-powered electrical systems from damaging surge events. Common applications include 24VDC vehicles, marine systems, RV systems, industrial equipment, generator systems, emergency power, communications equipment, and other compatible low-voltage DC applications.
What voltage is the MAXEMP24V designed for?
The MAXEMP24V is designed for 24VDC electrical systems only. Do not use this device on AC power, 12VDC systems, or any voltage outside the product rating.
What does the 500KA rating mean?
The 500KA rating refers to the surge current capacity of the device. The MAXEMP24V is designed for customers who want a high-capacity 24VDC surge protection option for compatible battery-powered electrical systems.
How is the MAXEMP24V different from the MAXEMP12V?
The MAXEMP24V and MAXEMP12V are designed for similar DC surge protection applications, but they are made for different system voltages. The MAXEMP24V is designed for 24VDC electrical systems, while the MAXEMP12V is designed for 12VDC electrical systems.
Does the MAXEMP24V protect against EMP, CME, solar flare, and lightning-related surges?
Yes. The MAXEMP24V is designed to help protect compatible 24VDC systems against normal surge events, indirect lightning-related surge activity, and EM-related surge events such as EMP, CME, and solar flare related electrical disturbances.
Where should the MAXEMP24V be installed?
The MAXEMP24V is recommended to be connected directly to the battery terminals for best protection. If battery installation is not possible, it may be connected to another suitable section of the 24VDC electrical circuit.
Can the MAXEMP24V be used on 24VDC vehicles or equipment?
Yes. The MAXEMP24V can be used on compatible 24VDC vehicles, equipment, and battery-powered electrical systems to help protect against damaging surge events.
Can the MAXEMP24V be used on boats, RVs, generators, or other 24VDC battery systems?
Yes. The MAXEMP24V may be used on compatible 24VDC battery circuits in marine, RV, generator, off-grid, communications, industrial, and emergency equipment applications when installed according to the product instructions and voltage rating.
How is the MAXEMP24V wired?

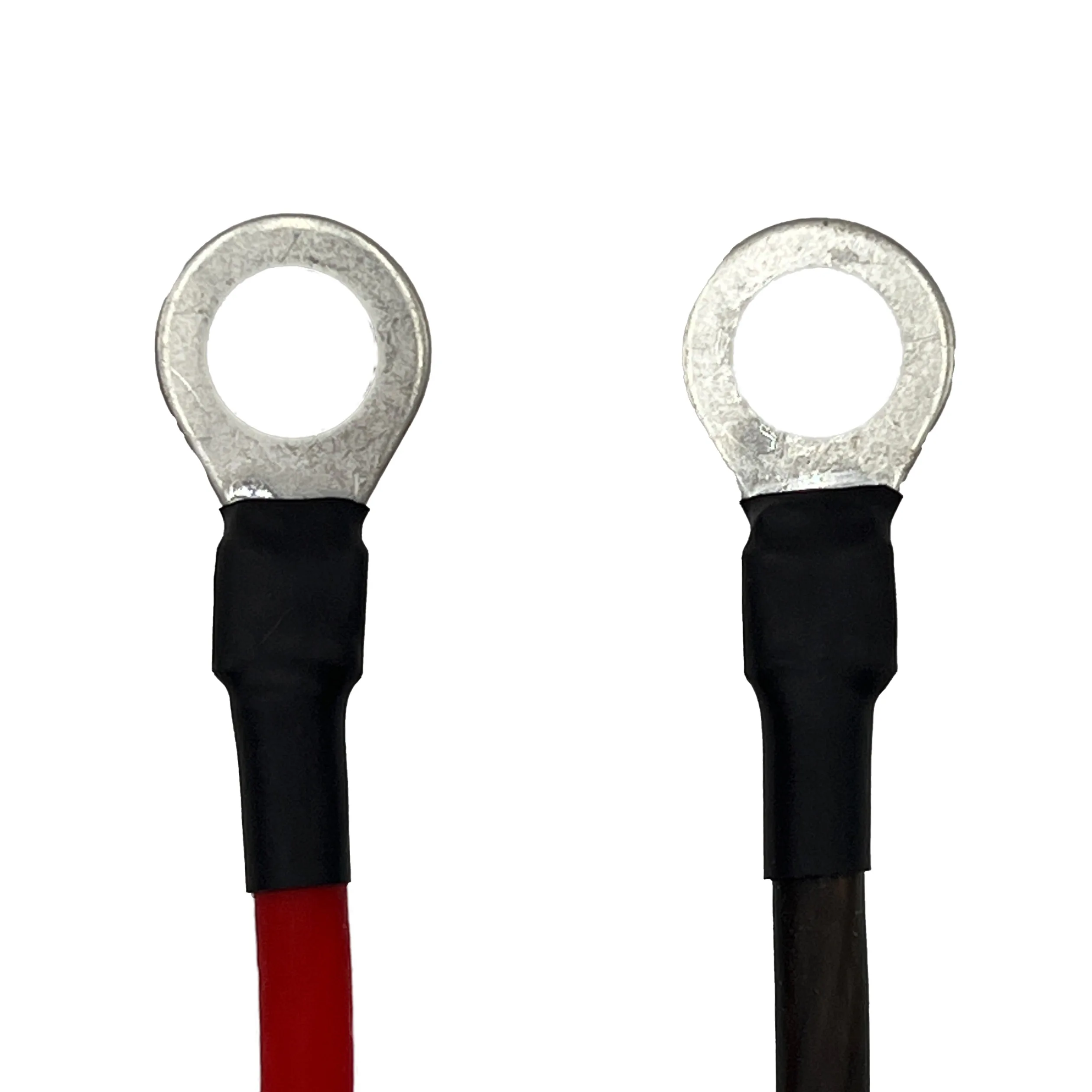

The MAXEMP24V has two wires. The red wire connects to the positive side of the 24VDC circuit, and the black wire connects to the negative side of the 24VDC circuit.
Does the MAXEMP24V connect to chassis ground?
No. The MAXEMP24V connects only to the positive and negative sides of the 24VDC electrical circuit. On many DC systems, the chassis may already be connected to the negative side of the battery system. Adding a third chassis ground wire could create a ground loop and cause electrical issues.
Is polarity important when installing the MAXEMP24V?
Yes. The MAXEMP24V is polarized. The red wire must be connected to positive, and the black wire must be connected to negative. Always verify polarity before connecting or energizing the circuit.
What do the indicator lights mean?
The MAXEMP24V includes green and red indicator lights. Green means the surge protector is functioning correctly. Red means the surge protector needs to be replaced.
Does the MAXEMP24V need a fuse or circuit breaker?
No additional fuse or circuit breaker is required specifically for the MAXEMP24V because it connects in parallel with the electrical circuit and includes built-in overcurrent protection. Always make sure the 24VDC electrical system has proper circuit protection for the overall installation.
Can the MAXEMP24V be installed outdoors?
The MAXEMP24V is waterproof and suitable for harsh environments, but it should not be submerged in water. Install it in a secure location where it will not be exposed to physical damage or improper use.
Can the MAXEMP24V be submerged in water?
No. Do not submerge the MAXEMP24V in water. Although the device is waterproof, it should be installed and used in a way that prevents submersion or damage.
Can the MAXEMP24V be used on AC power?
No. The MAXEMP24V is for 24VDC electrical systems only. Do not use this device on AC power.
Can the MAXEMP24V be used on 12VDC systems?
No. The MAXEMP24V is designed for 24VDC systems only. For 12VDC systems, use the MAXEMP12V or another properly rated Bad Wolf 12VDC surge protector.
Can the MAXEMP24V be opened or modified?
No. Do not open, modify, tamper with, or improperly use the MAXEMP24V. If the device is damaged, improperly connected, or indicates replacement is needed, it should be replaced.
Who should install this product?
This product should be installed by someone familiar with 24VDC electrical systems, battery systems, polarity, and the equipment being protected. When in doubt, consult a qualified technician, mechanic, marine technician, RV technician, industrial technician, or installer.
Does this product include a warranty?
Bad Wolf surge protection devices include a 5-year product warranty. Eligible products may also include connected equipment warranty coverage when properly installed and registered according to the warranty terms.
