HSD240V-A Whole House Surge Protector with EMP Protection – 120/240V Split Phase – 260kA – Panel Mount – Type 1 SPD
$349.00
The Bad Wolf HSD240V-A is a high-capacity 4-wire Type 1 whole-house surge protector designed for compatible 120/240V split-phase electrical systems. With a 260kA surge current capacity and six-mode protection, it provides premium surge protection for homes, electrical panels, service equipment, and light commercial applications.
The HSD240V-A is the direct panel-mount version of the HSD240V. Its built-in 1/2-inch NPT male mounting connection allows the surge protector to mount directly to a compatible electrical panel or enclosure, helping keep conductor length short for optimum surge protection performance.
Key Features
- 260kA surge current capacity
- Type 1 SPD: Suitable for compatible service-entrance or load-side applications
- 4-wire configuration: L1, L2, Neutral, and Ground
- Six-mode protection: L1-L2, L1-N, L2-N, L1-G, L2-G, and N-G
- EMP-related surge protection: Designed to help protect against surge activity associated with EMP, CME, solar-flare, lightning-related, utility-switching, and other transient events
- Direct panel-mount design: Built-in 1/2-inch NPT male connection
- NEMA 4X / IP67 enclosure: Suitable for indoor or outdoor installation
- Two green status LEDs: One protection indicator for L1 and one for L2
- ETL Listed to UL 1449 5th Edition
- 5-year limited warranty

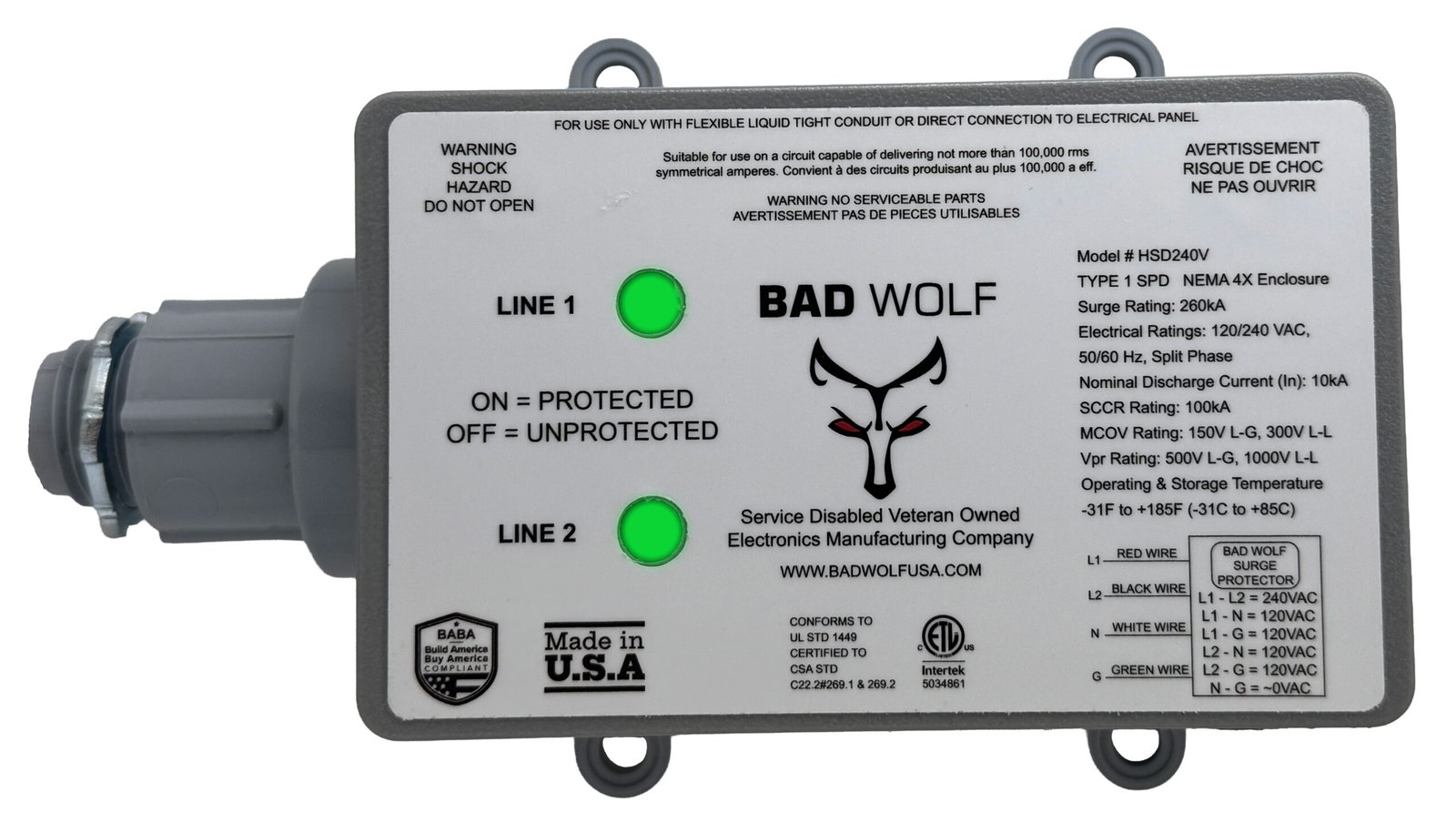

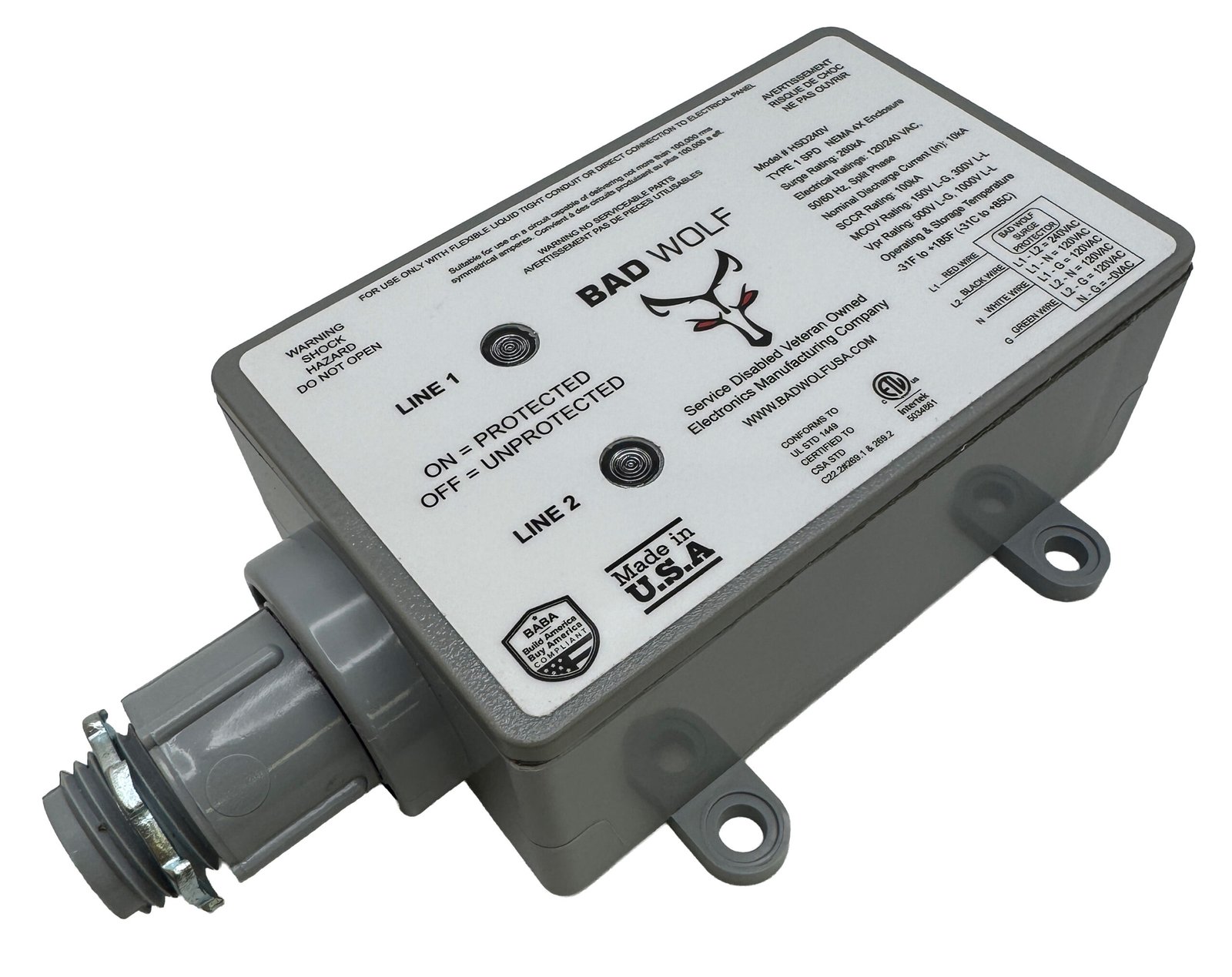

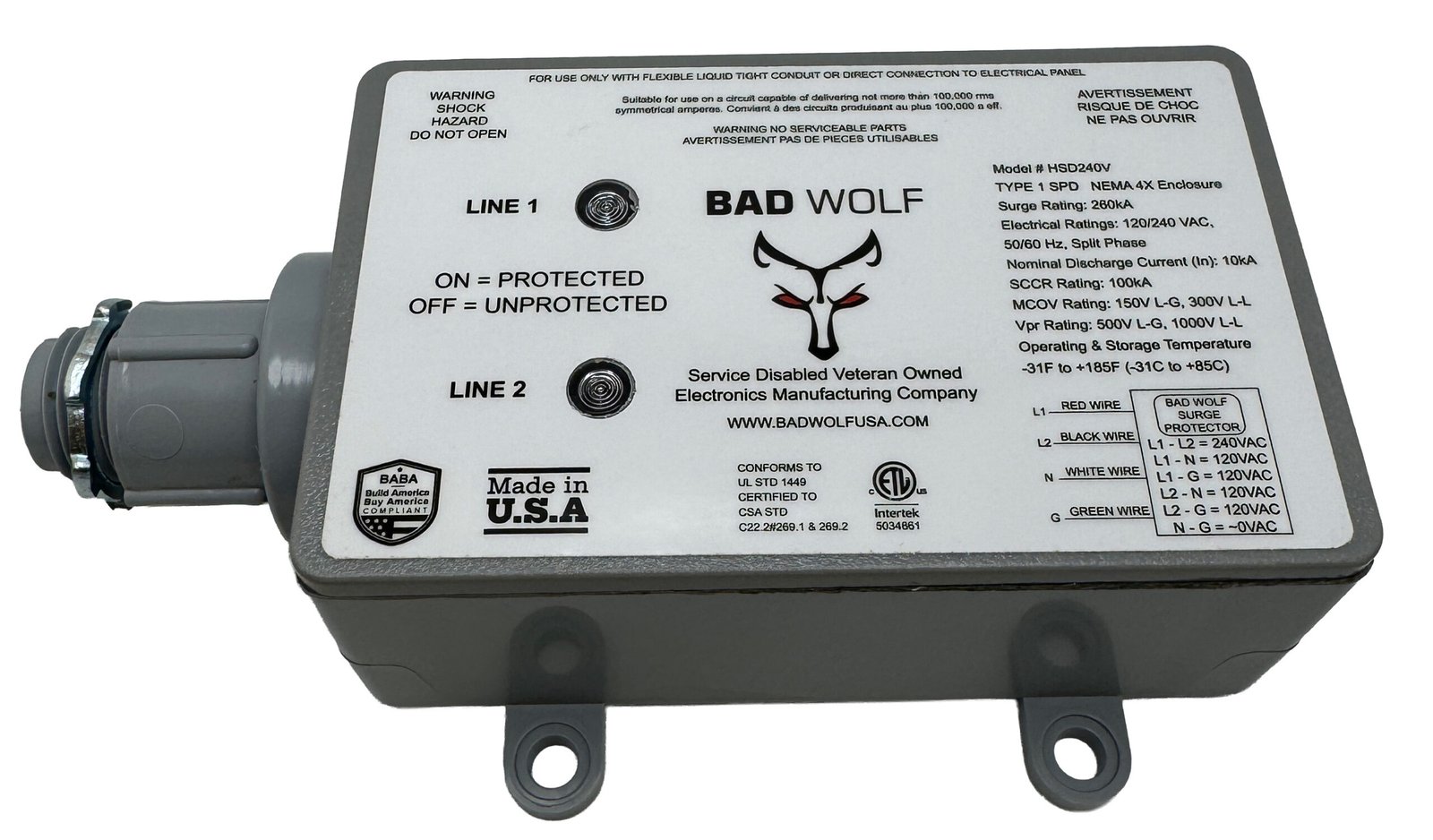

HSD240V-A Whole House Surge Protector – 260kA Type 1 Panel-Mount SPD
The Bad Wolf HSD240V-A is a high-capacity 4-wire Type 1 whole-house surge protector designed for compatible 120/240V split-phase electrical systems. With a 260kA surge current capacity and six-mode protection, it provides premium panel-level surge protection for residential, light commercial, backup-power, and other compatible electrical applications.
The HSD240V-A is the direct panel-mount version of the HSD240V. Instead of using the 1/2-inch rigid conduit connection found on the standard HSD240V, the HSD240V-A incorporates a built-in 1/2-inch NPT male mounting connection that allows the surge protector to mount directly to a compatible electrical panel or enclosure.
This direct-mount design allows the SPD to be positioned close to the electrical connection point and helps keep conductor length short, straight, and direct for optimum surge protection performance.
High-Capacity Whole-House Surge Protection
The HSD240V-A is designed for applications where high-capacity surge protection is desired at the main electrical panel, service equipment, subpanel, disconnect, or another compatible electrical location.
- 260kA surge current capacity: High-capacity protection for demanding residential and light commercial electrical environments.
- 4-wire configuration: L1, L2, Neutral, and Ground.
- Six-mode protection: L1-L2, L1-N, L2-N, L1-G, L2-G, and N-G.
- Type 1 SPD: Suitable for compatible service-entrance or load-side applications when installed according to the product instructions and applicable electrical codes.
- 100kA SCCR: Suitable for high available fault-current environments when properly applied.
EMP & High-Energy Surge Protection
The HSD240V-A is part of Bad Wolf's high-capacity surge protection lineup designed to help protect electrical systems from damaging transient events associated with EMP, CME and solar-related disturbances, indirect lightning-related surges, utility switching, load switching, and other high-energy transient events.
No surge protective device can prevent every possible type or magnitude of electrical event, but the HSD240V-A provides a high-capacity layer of protection for compatible 120/240V split-phase electrical systems.
Direct Panel-Mount Design
The HSD240V-A includes a built-in 1/2-inch NPT male mounting connection designed for direct installation into a compatible electrical panel or enclosure knockout.
This distinguishes the HSD240V-A from the standard HSD240V, which uses a 1/2-inch rigid conduit connection. The two models provide the same HSD-series protection platform while giving the installer a choice of mounting method.
Built for Indoor or Outdoor Installation
The HSD240V-A uses a rugged NEMA 4X / IP67 enclosure suitable for indoor or outdoor applications when properly installed. Its durable enclosure makes it appropriate for residential electrical panels, garages, workshops, generator-related electrical systems, light commercial facilities, and other compatible installations.
Dual Protection Status Indicators
The HSD240V-A uses two green status LEDs, providing independent visual indication for Line 1 and Line 2.
- L1 Green LED ON: Line 1 protection is active.
- L2 Green LED ON: Line 2 protection is active.
- Either LED OFF: Protection for that line is no longer active and the surge protector should be inspected and replaced as required.
Installation Overview
Professional installation is recommended. The HSD240V-A should be installed by a qualified electrical professional in accordance with the product instructions, product label, applicable electrical codes, and local requirements.
For best surge protection performance, mount the HSD240V-A as close to the electrical connection point as practical and keep all connecting conductors as short, straight, and direct as possible.
- Black Wire: L1
- Red Wire: L2
- White Wire: Neutral
- Green Wire: Equipment Ground
Listings & Compliance
- ETL Listed to UL 1449 5th Edition
- Certified to CSA C22.2 No. 269.1 and 269.2
- 100kA RMS symmetrical SCCR
- NEMA 4X / IP67 enclosure
- 5-year limited warranty
Refer to the Specifications and Installation tabs for complete electrical ratings, wiring information, and installation requirements.
Product Details
| Weight | 24 oz |
|---|---|
| Dimensions | 5 × 4 × 2 in |
| Operating Voltage (Vac) | 120/240V |
| Electrical System | 120/240V Split Phase |
| Current Type | AC |
| SPD Type | Type 1, Type 2 |
| Recommended Applications | Backup Power, Electrical Panel, Home, HVAC, Light Commercial Panel, Residential Panel, Service Entrance, Smart Home, Whole House |
| Installation / Connection Type | Panel Mount, Pre-wired Leads, Hardwire |
| Surge Current Capacity | 260kA |
| Surge Events Protected Against | CME-related disturbances, EMP-related surge events, Lightning-related surges, load switching transients, motor-generated surges, solar flare-related transients, utility switching transients |
| Enclosure Rating | Indoor, NEMA 4X, Outdoor |
| Product Dimensions | 5 × 4 × 2 in |
| Product Weight | 24 oz |
Installation
Professional installation is recommended. The HSD240V-A should be installed by a qualified electrical professional familiar with 120/240V split-phase electrical systems and surge protective devices. Follow the product label, Bad Wolf installation instructions, applicable electrical codes, and local requirements.
Always disconnect power before installation. Verify that power has been disabled using an appropriate voltage-sensing device before working on the electrical system. Confirm that the HSD240V-A is compatible with the voltage and wiring configuration of the electrical system being protected.
Direct Panel-Mount Installation
- The HSD240V-A is designed for compatible 120/240V split-phase electrical systems.
- This model uses a 4-wire connection: L1, L2, Neutral, and Ground.
- The HSD240V-A includes a built-in 1/2-inch NPT male mounting connection designed to mount directly into a compatible 1/2-inch electrical panel or enclosure knockout.
- The HSD240V-A does not use the 1/2-inch rigid conduit connection found on the standard HSD240V.
- Position the surge protector as close to the electrical connection point as practical.
- Keep all conductors as short, straight, and direct as possible between the surge protector and the electrical connection point.
- Avoid sharp bends, coils, loops, or unnecessary conductor length, as additional conductor length can reduce surge protection performance.
- Connect all conductors according to the product wiring diagram, product label, and applicable electrical code requirements.
- Use the appropriate electrical connection method, overcurrent protection, disconnecting means, and other installation components required for the specific application and applicable electrical codes.
- Maintain the integrity of the electrical enclosure and use appropriate sealing methods when the installation is exposed to moisture or outdoor conditions.
Electrical Connections
- Black Wire – L1: Connect to Line 1.
- Red Wire – L2: Connect to Line 2.
- White Wire – Neutral: Connect to the system neutral.
- Green Wire – Ground: Connect to the equipment grounding system.
Service Entrance or Panel Installation
As a Type 1 surge protective device, the HSD240V-A is suitable for compatible service-entrance or load-side applications when installed in accordance with the product instructions, applicable electrical codes, and requirements of the authority having jurisdiction.
The HSD240V-A provides six-mode surge protection between:
- L1-L2
- L1-N
- L2-N
- L1-G
- L2-G
- N-G
For Best Surge Protection Performance
The physical installation of a surge protective device has a direct effect on its performance. Install the HSD240V-A as close to the electrical connection point as practical and minimize the length of all connecting conductors.
Whenever possible:
- Keep conductors short and straight.
- Avoid unnecessary bends and loops.
- Do not coil excess wire.
- Route conductors using the most direct path available.
- Maintain secure line, neutral, and grounding connections.
Dual Status Indicators
After installation is complete and all electrical connections have been verified, restore power and check the two green status LEDs.
- L1 Green LED ON: Line 1 protection is active.
- L2 Green LED ON: Line 2 protection is active.
- Either LED OFF: Protection for that line is no longer active and the surge protector should be inspected and replaced as required.
If either green LED does not illuminate after installation, disconnect power and verify the wiring and electrical connections before placing the protected electrical system back into service.
Important: Refer to the product label and current Bad Wolf installation instructions for product-specific wiring and installation requirements. Installation must comply with the National Electrical Code (NEC), applicable local electrical codes, and requirements of the authority having jurisdiction.
Warranty
Bad Wolf surge protection devices include a 5-year product warranty.
Eligible products may also include connected equipment warranty coverage when properly installed and registered according to the warranty terms.
Please review the full warranty terms for complete details, limitations, registration requirements, and coverage information.
FAQ
What is the HSD240V-A mainly used for?
The HSD240V-A is a high-capacity whole-house surge protector designed for compatible 120/240V split-phase electrical systems. It is well suited for homes, electrical service equipment, main panels, subpanels, generator-related electrical systems, workshops, light commercial facilities, and other applications where high-capacity surge protection is desired.
What is the difference between the HSD240V-A and HSD240V?
Both models provide the same 260kA surge current capacity, 4-wire L1/L2/Neutral/Ground configuration, six-mode surge protection, and HSD-series EMP-related surge protection. The primary difference is the mounting method.
The HSD240V-A has a built-in 1/2-inch NPT male mounting connection for direct mounting to a compatible electrical panel or enclosure. The standard HSD240V uses a 1/2-inch rigid conduit connection for installations where the SPD is mounted away from the panel or a conduit-mounted installation is preferred.
How is the HSD240V-A mounted?
The HSD240V-A is designed for direct panel mounting. Its built-in 1/2-inch NPT male connection installs into a compatible 1/2-inch knockout in an electrical panel or enclosure. Direct mounting allows the SPD to be positioned close to the electrical connection point and helps keep conductor length short.
Can the HSD240V-A be used as a whole-house surge protector?
Yes. The HSD240V-A is designed for whole-house surge protection on compatible 120/240V split-phase electrical systems. Its 4-wire L1/L2/Neutral/Ground configuration provides surge protection across the major electrical modes used in a residential split-phase system.
What type of electrical system is the HSD240V-A designed for?
The HSD240V-A is designed for compatible 120/240V split-phase AC electrical systems commonly used in residential and light commercial applications.
How is the HSD240V-A wired?
The HSD240V-A uses a 4-wire connection:
- Black Wire: L1
- Red Wire: L2
- White Wire: Neutral
- Green Wire: Equipment Ground
What protection modes does the HSD240V-A provide?
The HSD240V-A provides six-mode surge protection:
- L1-L2
- L1-N
- L2-N
- L1-G
- L2-G
- N-G
What does the 260kA rating mean?
The 260kA rating refers to the surge current capacity of the HSD240V-A. It is designed as a high-capacity surge protective device for customers who want a substantial level of surge protection at the electrical panel or service equipment.
Does the HSD240V-A provide EMP-related surge protection?
Yes. The HSD240V-A is designed to help protect compatible electrical systems from damaging surge activity associated with EMP, CME and solar-related electrical disturbances, as well as more common transient events such as utility switching, load switching, and lightning-related surges.
No surge protective device can guarantee protection from every possible type or magnitude of electrical event. Proper installation, grounding, bonding, and conductor routing are important parts of an effective surge protection system.
Does the HSD240V-A protect against lightning?
The HSD240V-A is designed to help protect against damaging electrical surges associated with indirect lightning activity. No surge protector can guarantee protection from a direct lightning strike, but a properly installed SPD can help reduce the risk of damage from lightning-related surge energy entering the electrical system.
How does the HSD240V-A compare with the PHSD240V-A?
Both models are high-capacity Type 1 whole-house surge protectors designed for compatible 120/240V split-phase systems and both use a direct panel-mount design. The HSD240V-A provides 260kA of surge current capacity, while the PHSD240V-A provides 520kA for customers seeking the highest-capacity protection level in the HSD-series product family.
Is the HSD240V-A a Type 1 surge protective device?
Yes. The HSD240V-A is a Type 1 surge protective device suitable for compatible service-entrance or load-side applications when installed according to the product instructions and applicable electrical codes.
Does the HSD240V-A require a circuit breaker?
The HSD240V-A is a Type 1 surge protective device. The required connection method and any required overcurrent protection depend on where and how the device is installed. Follow the Bad Wolf installation instructions, product labeling, applicable electrical codes, and requirements of the authority having jurisdiction for the specific installation.
What do the two green LED indicators mean?
The HSD240V-A uses two green status LEDs, with one indicator for Line 1 and one for Line 2.
- L1 Green LED ON: Line 1 protection is active.
- L2 Green LED ON: Line 2 protection is active.
- Either LED OFF: Protection for that line is no longer active and the surge protector should be inspected and replaced as required.
Can the HSD240V-A be installed outdoors?
Yes. The HSD240V-A uses a rugged NEMA 4X / IP67 enclosure suitable for indoor or outdoor applications when properly installed in accordance with the product instructions and applicable electrical requirements.
Why is keeping the connecting wire length short important?
Surge protection performance is affected by the impedance of the installation conductors. Mounting the HSD240V-A close to the electrical connection point and keeping the conductors short, straight, and direct helps the surge protector respond more effectively to fast transient surge events.
Who should install the HSD240V-A?
Installation should be performed by a qualified electrical professional or other qualified installer familiar with electrical panels, service equipment, and surge protective devices. Installation must follow the product instructions, product label, applicable electrical codes, and local requirements.
Does the HSD240V-A include a warranty?
Yes. The HSD240V-A includes a 5-year limited product warranty. Refer to the current Bad Wolf warranty terms for complete coverage, registration, eligibility, limitations, and connected-equipment coverage information.
Specifications
HSD240V-A Specifications
| Model Number | HSD240V-A |
|---|---|
| Product Type | High-capacity 4-wire direct panel-mount whole-house surge protection device with EMP-related surge protection |
| SPD Type | Type 1 |
| Electrical System | 120/240V split-phase |
| Frequency | 50/60 Hz |
| Current Type | AC |
| Surge Current Capacity | 260kA |
| Short-Circuit Current Rating (SCCR) | 100kA RMS symmetrical |
| Maximum Continuous Operating Voltage (MCOV) | 150 VAC L-G; 300 VAC L-L |
| Voltage Protection Rating (VPR) | 500V L-G; 1000V L-L |
| Protection Modes | L1-L2, L1-N, L2-N, L1-G, L2-G, N-G |
| Surge Events Protected Against | Lightning-related surges, utility switching transients, load switching transients, motor-generated surges, EMP-related surge events, CME-related disturbances, and solar flare-related transients |
| Connection Type | Hardwire, pre-wired leads |
| Mounting Connection | Built-in 1/2-inch NPT male connection for direct panel or enclosure mounting |
| Wiring | 36 inch pre-wired leads |
| Typical Wire Connections | Black = L1, Red = L2, White = Neutral, Green = Equipment Ground |
| Enclosure Rating | NEMA 4X / IP67 |
| Installation Environment | Indoor or outdoor |
| Status Indicators | Two green LED indicators, one for Line 1 and one for Line 2 |
| LED Status | L1 Green ON = Line 1 protected; L2 Green ON = Line 2 protected; LED OFF = corresponding line is not protected |
| Product Dimensions | 5 x 4 x 2 in |
| Product Weight | 24 oz |
| Listings | Intertek ETL Listed to UL 1449 5th Edition; certified to CSA C22.2 No. 269.1 and 269.2 |
| EMC Testing | FCC 47 CFR Part 15 tested; ICES-003 tested |
| Warranty | 5 years |
