Flush Mount Plate FMP-63
$40.00
- Compatible with model number SP240V400KA surge protectors
- Flush mount kit provides a clean safe mounting option when installing on a flat surface like drywall
- The flush mount plate measures 10.0 inches by 6.0 inches and is 0.125 inches think and made from black textured ABS plastic

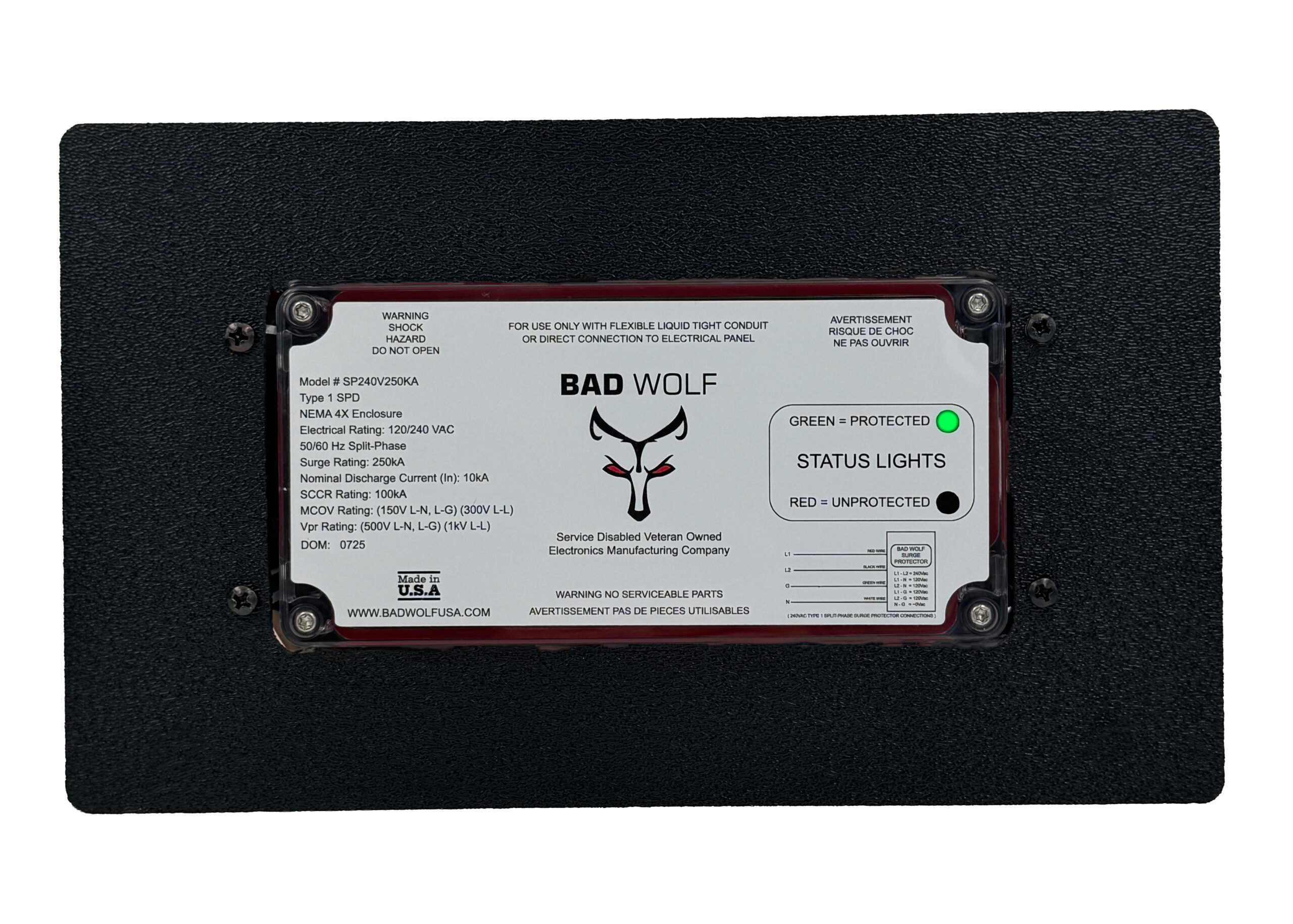

This flush mount kit is suitable for Bad Wolf SP240V400KA surge protectors and provides a clean effective mounting option for drywall or other flat surfaces.
Product Details
| Weight | 6 oz |
|---|---|
| Dimensions | 10 × 6 × 0.125 in |
| shipping weight | 8 oz |
Specifications
Review the product details and product description for voltage, surge current rating, connection type, enclosure rating, wiring details, certifications, and other technical information.
For detailed product-specific ratings, refer to the specifications listed on this product page and any available product documentation.
Installation
Professional installation is recommended. Installation should be performed by a qualified electrician, licensed contractor, or qualified installer in accordance with the product instructions, applicable electrical codes, and local requirements.
The FMP-63 Flush Mount Plate is designed for use with the Bad Wolf SP240V400KA surge protector. Verify product compatibility before installation.
Flush Mount Installation Notes
- Choose an appropriate location for the flush-mount plate, typically above, beside, or below the electrical panel.
- Make sure the wall area is free of obstructions, such as studs, so there is enough space to route the surge protector conductors.
- Install the flush-mount plate close enough to the electrical panel so the provided wires can be safely routed into the panel.
- Use the provided cut-out template to mark the wall opening and mounting holes.
- Drill the mounting holes and install the supplied wall anchors.
- Cut the wall opening by marking the four cut-out corners and cutting between the marked points.
- Remove the panel knockout that best aligns with the surge protector location.

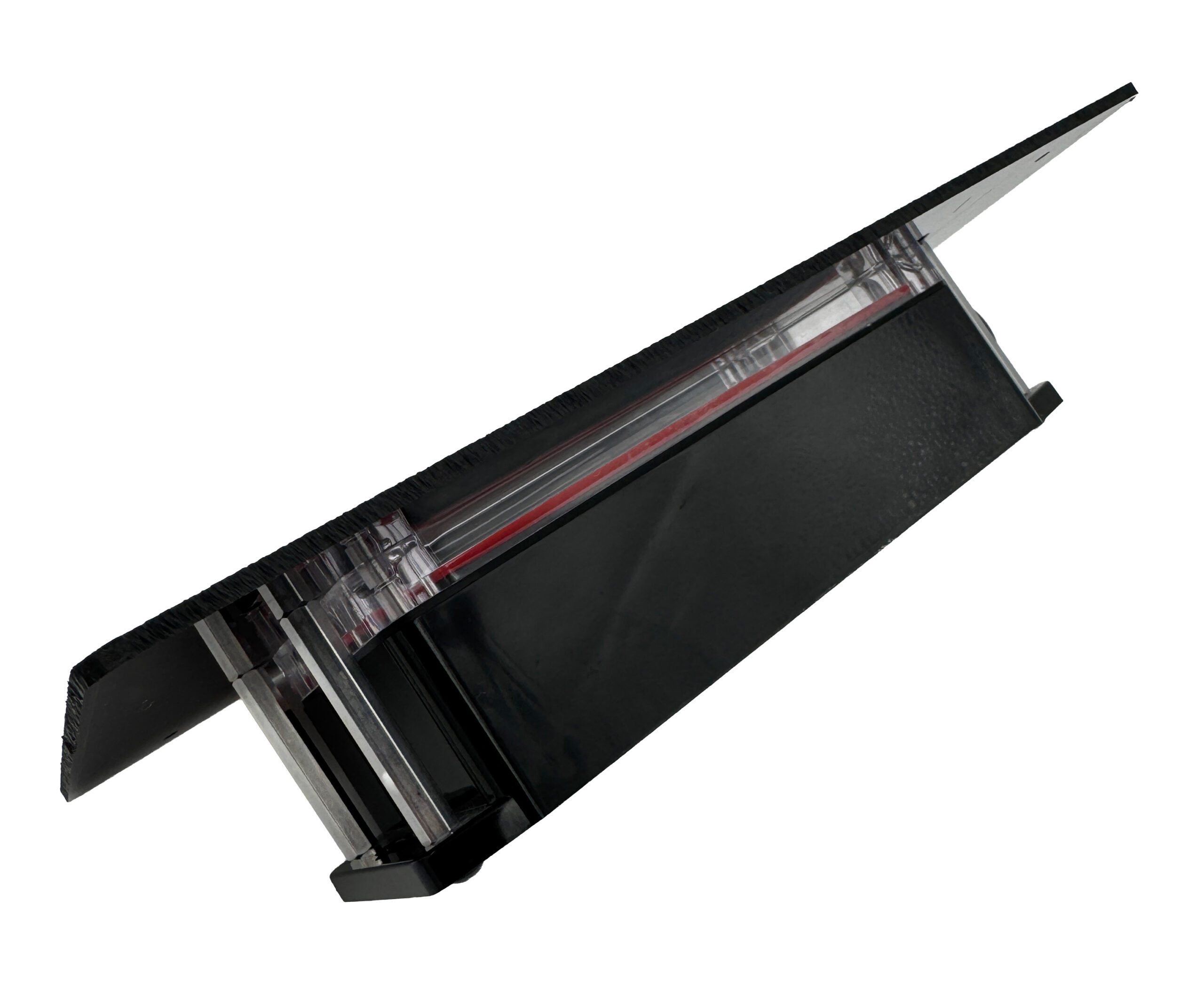

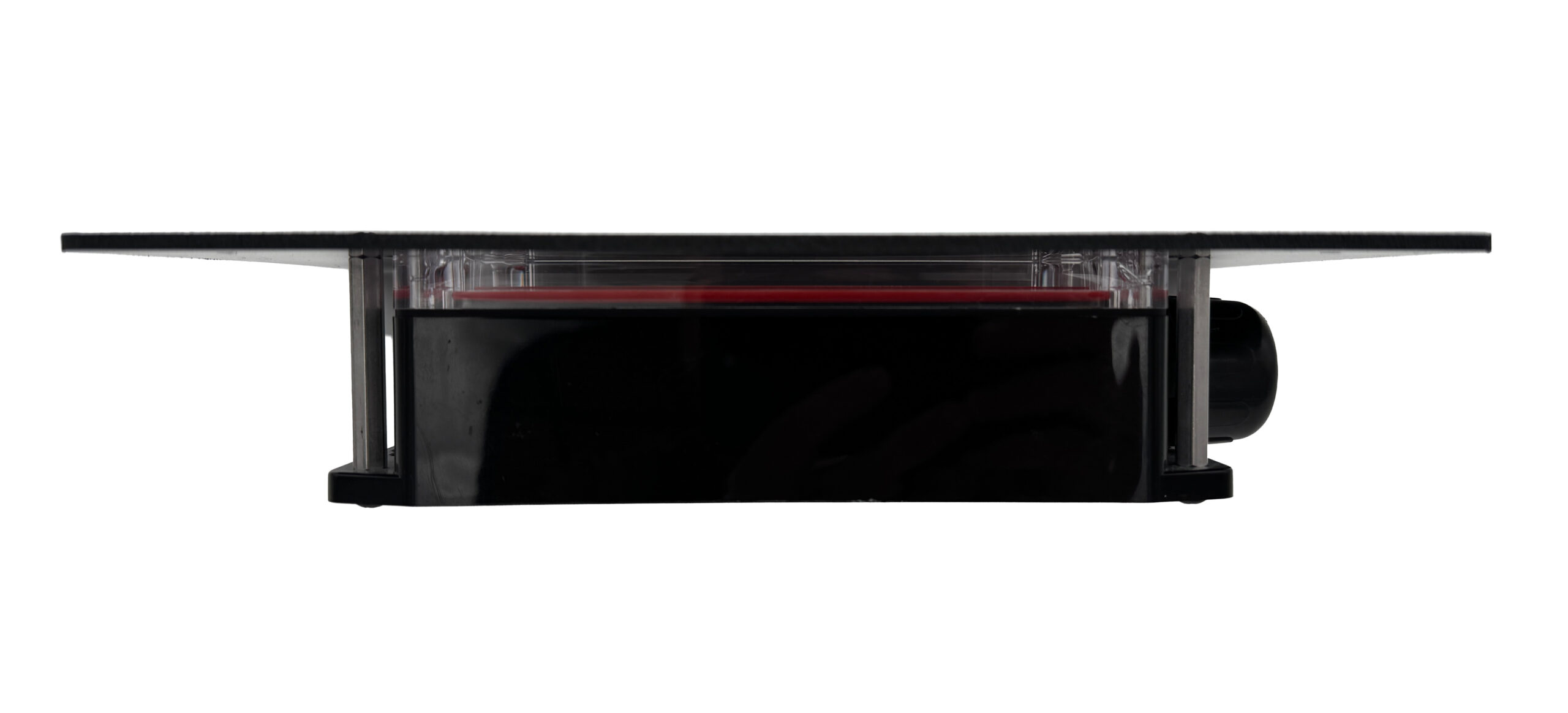

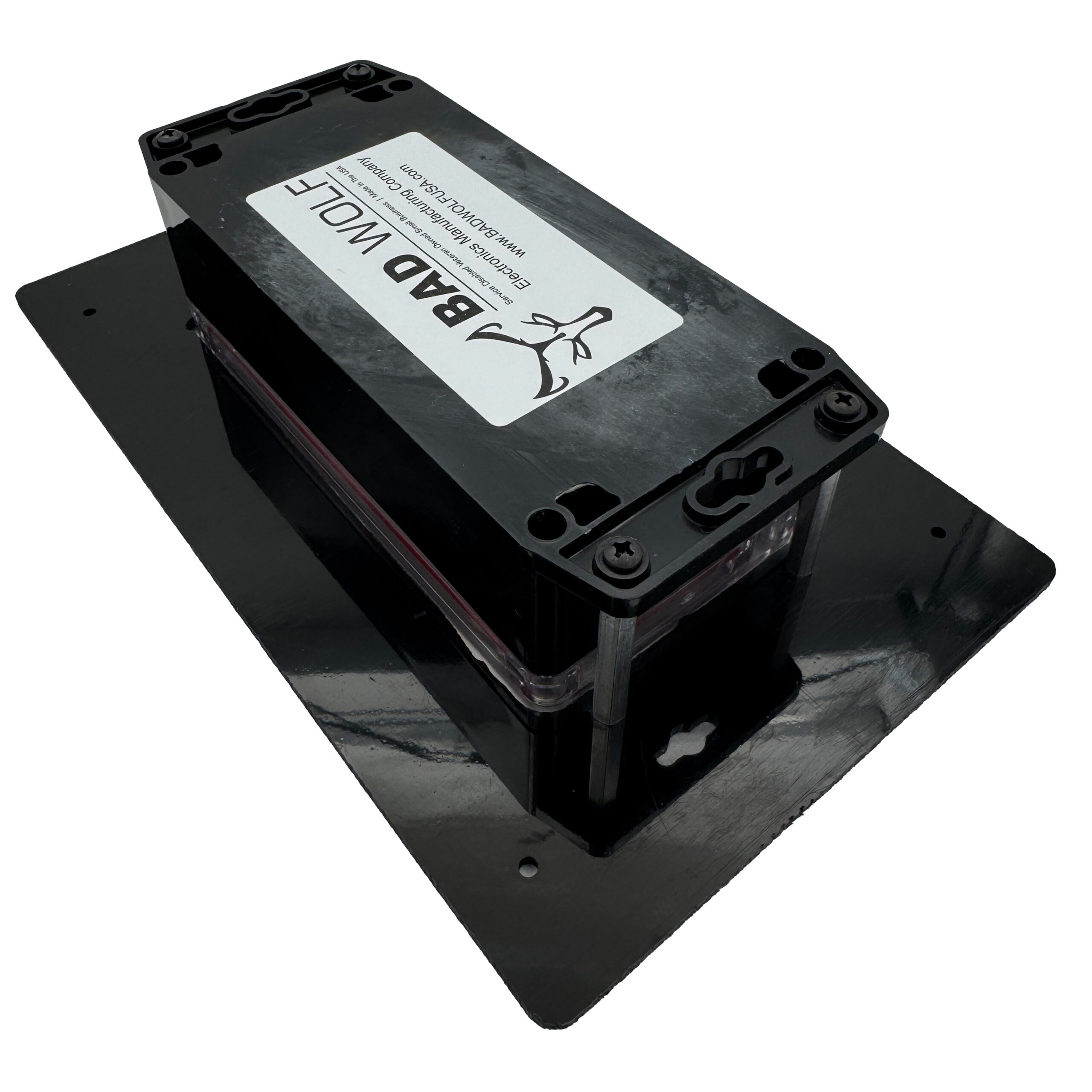

- Attach the SP240V400KA surge protector to the flush-mount plate using the supplied standoffs and screws.
- Route the surge protector wires through the required conduit or fitting and into the electrical panel.
- Secure the flush-mount plate to the wall using the supplied mounting hardware.
Installer-Supplied Items

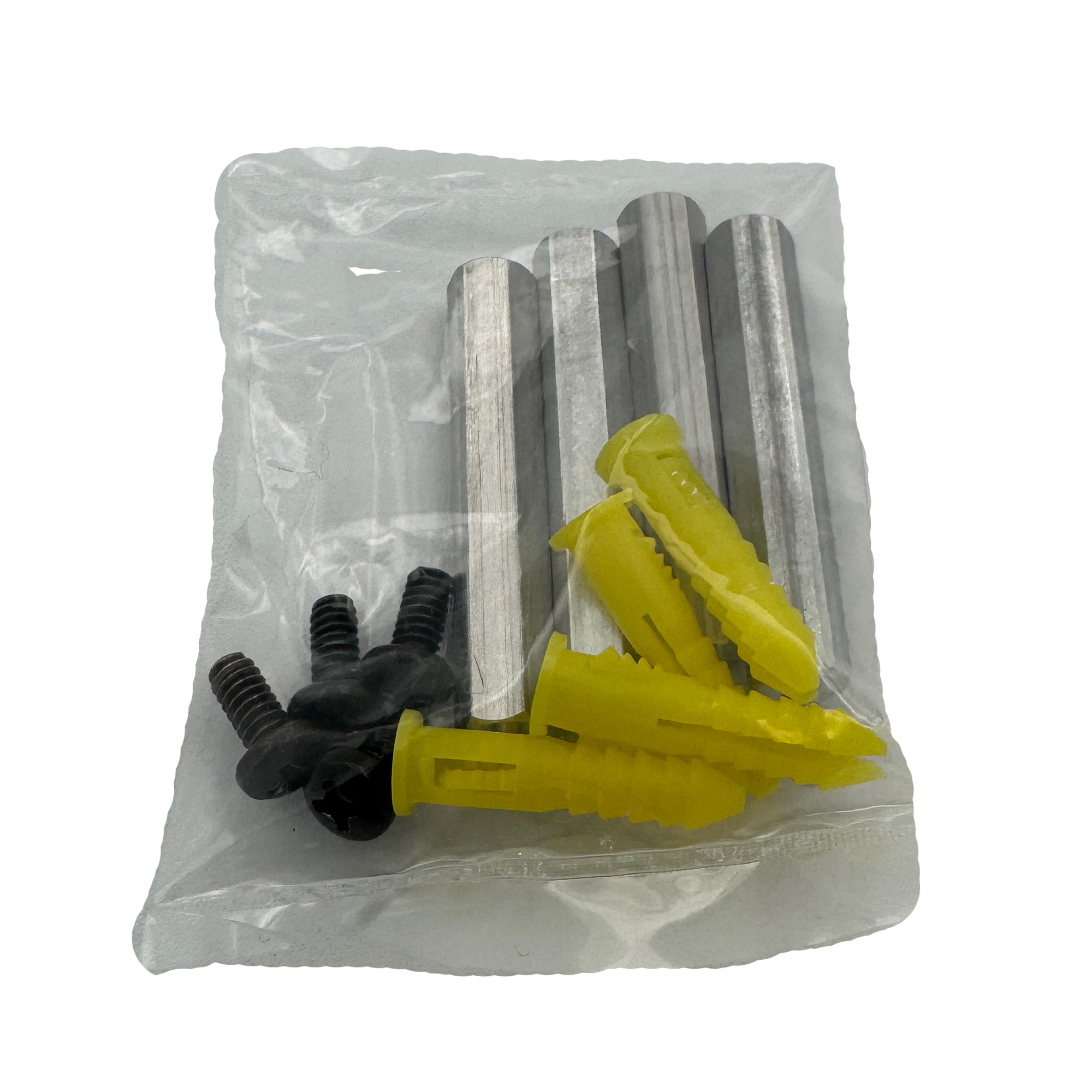

Mounting hardware is included with the FMP-63. The installer or customer must supply the necessary tools and any required conduit, fittings, or additional materials needed for the installation.
Important Safety Note
Turn off all power supplying the equipment before working on or inside the electrical panel. After installation is complete, restore power and verify that the SP240V400KA status lights show normal operation.
Refer to the FMP-63 installation instructions and the SP240V400KA product instructions for complete installation details.
Warranty
Bad Wolf surge protection devices include a 5-year product warranty.
Eligible products may also include connected equipment warranty coverage when properly installed and registered according to the warranty terms.
Please review the full warranty terms for complete details, limitations, registration requirements, and coverage information.
FAQ
Is this flush mount plate required?
No. The flush mount plate is optional. It provides a cleaner mounting option when installing a compatible Bad Wolf surge protector on drywall or another flat surface.
Which products is this plate compatible with?
This flush mount plate is compatible with SP240V400KA surge protectors.
What are the dimensions?
The flush mount plate measures 10.0 inches by 6.0 inches and is 0.125 inches thick.
